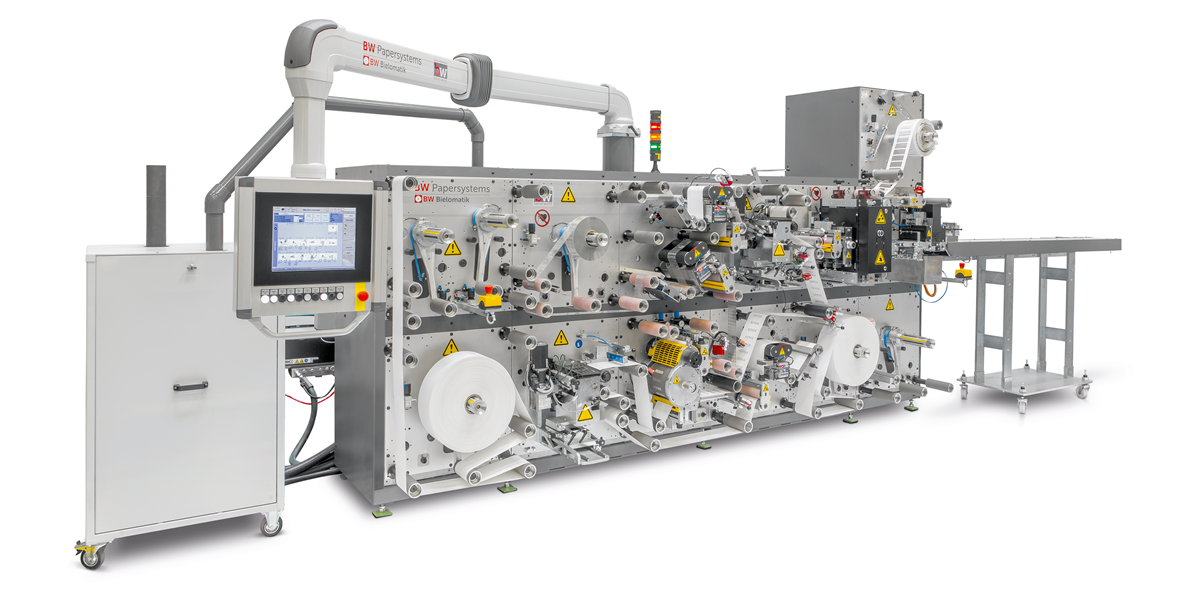

SpeedLiner T-165 RFID Converting Machine

Product Description

The SpeedLiner T-165 offers the same functionalities as larger frame T-165 machines while offering a lower and more compact solution. With best-in-class performance and product quality the SpeedLiner T-165 has quickly become very popular in the RFID industry. Possibility of upgrading to larger configurations, efficiency, speed and lowest cost of ownership are those more distinguishing trades of the Speedliner T-165. This Converting Mashine provides up to 12 process fields for highly flexible process configurations.

Like all modular BW Bielomatik RFID machines, the SpeedLiner T-165 is user friendly, as it is easy to install, operate and maintain.

  • Low-profile machine frame for highly flexible process configurations – upgradeable
  • Production: reel-to-reel labels and tags, reel to single ticket, folded products, delam-relam
  • Processing of self-adhesive materials and/or hotmelt application
  • PUR hotmelt option available for contactless Smartcards, NFC gaming cards
  • High speed register placement of dry or wet inlays
  • Numerous converting options
  • Easy implementation of new processes and customization, with short time to market
  • Excellent accessibility, very ergonomic design, shortest possible setup change times
  • Modern servo-drive and controls technology
Download a brochure
We strongly benefit from numerous converting alternatives offered by BW Papersystems. Efficiency, speed and best-in-class performance ensure our production of high quality RFID labels, hangtags, stickers and tickets. - Daisy Liao, Founder, Fujian Xingze IOT Technology, China
Product Features

Modular Compact High-Speed RFID Converting Machine

Highly Flexible Configurations

Modular process fields enable highly flexible process configurations.

High Speed

High speed register placement of dry or wet inlays.

Reel-to-Reel and Reel-to-Single

Production of smart labels and tags on reels, single tickets and folded products.

Operator-Friendly

Excellent accessibility, ergonomic design, shortest possible setup change times.
  • Technical Data
  • Product Details
  • Options
ImperialMetric
Processing width - standard 6.5 in.165 mm
Processing width - under certain conditions 7.7 in.196 mm
Speed - under certain conditionsmax.295 fpm90 mpm
Speed - inlay cutting knive speedmax.1560 cuts/min
Reel diameter - air shafts, quick changemax.23.6 in.600 mm
Amount of functional modules 8-12, upgradeable to 14

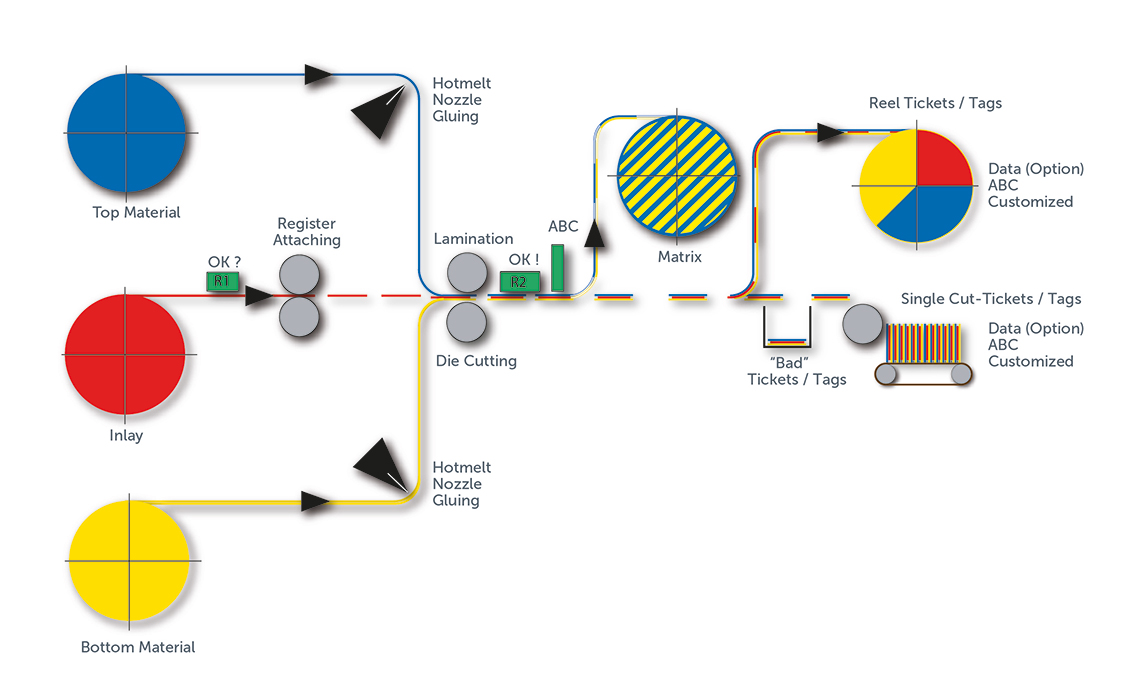

SpeedLiner T-165 Process

SpeedLiner T-165 Process

Please contact us for more information.
Related Content
BW Papersystems Leadership Team in Europe

European Manufacturing Expansion for BW Papersystems

Opportunities and winners when using RFID on FMCG

RAIN RFID Technology for Baggage Tracking

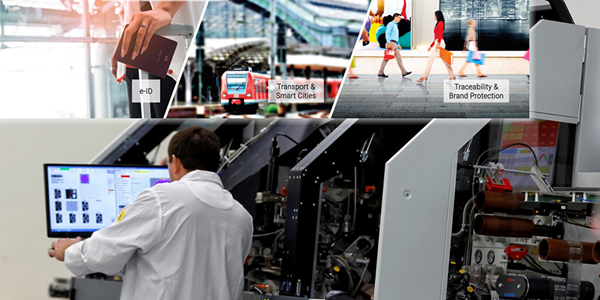

RFID machine at Paragon ID

Paragon ID increases capacity and adds value with a BW Bielomatik TagLiner for RFID tag production

BW Bielomatik TagLiner – New Chip Bonding Concept for RFID Tag Production

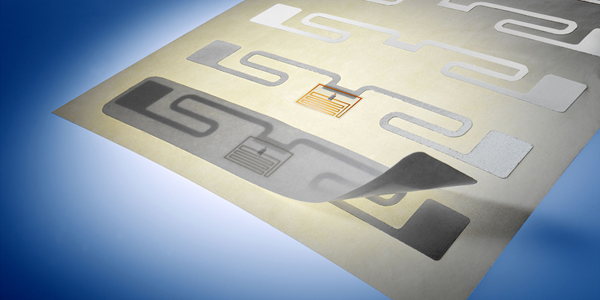

RFID Chip
