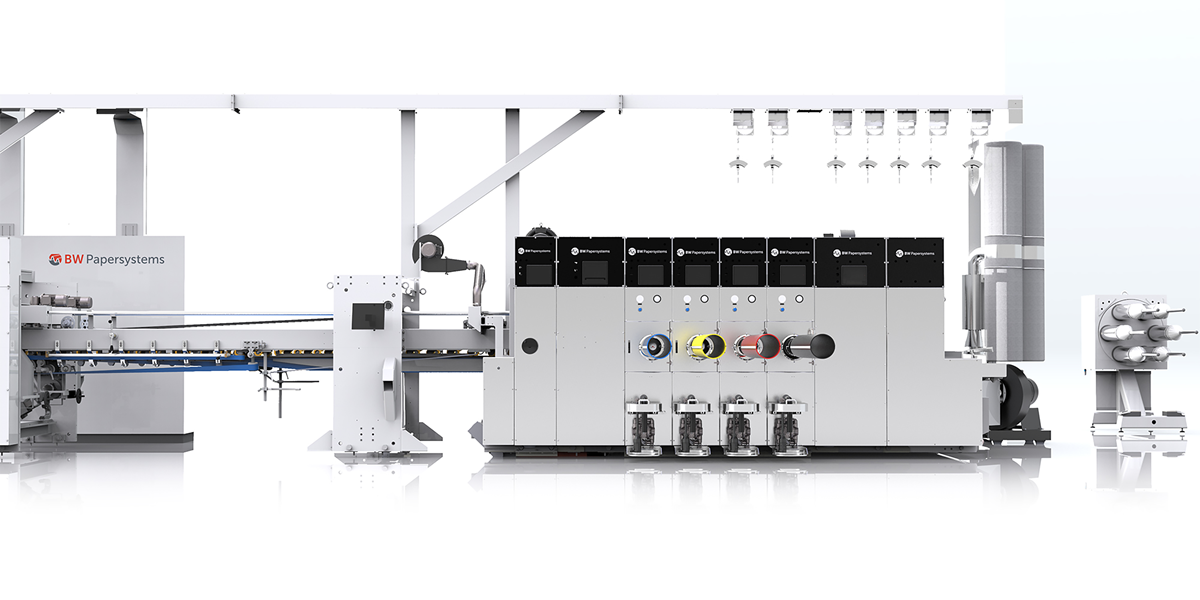

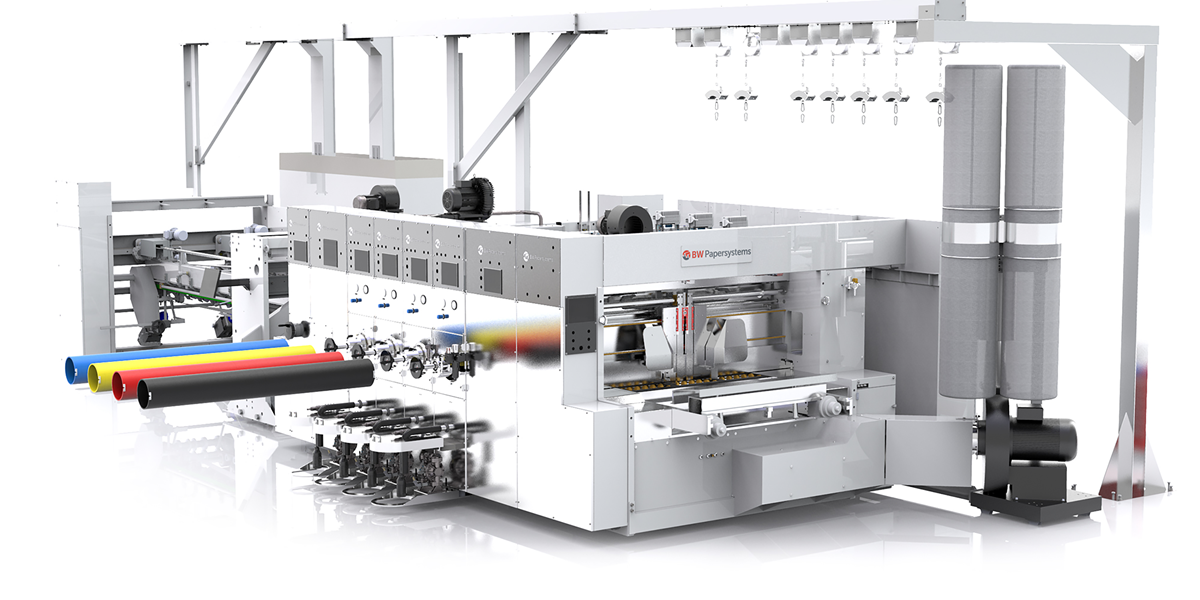

6.18 MiniPro Flexo Folder Gluer

Product Description

The 6.18 (26.71) MiniPro Flexo Folder Gluer has been designed to minimize machine stops for order change by limiting the time needed to printing plate change over, and also features an option of an inline bottom printing unit which makes this machine the only finishing line of its size that can print on both sides of the sheet on the same line, in one pass. The Corrusleeve® system avoids the need for opening and closing the line to change the printing plate, in total safety for operators. Real Servo Drive technology allows for excellent printing register, slotting and die cutting.

Download a brochure
Euroscatola is a high performing, high output plant and needed machines that could handle around 30 different size jobs per day. - Silvio Cappelleti, CEO and President of Euroscatola, Italy
Product Features

Minimum space requirements for maximum satisfaction.

Direct Drive

Real servo drive technology. Three motors for every print unit.

Corrusleeve® System

The fastest application to change (seven) printing plates within minutes. Consistent printing with the Chamber Doctor Blade System. If you can dream it, you can do it!

Inside Printing

Printing inside and outside of the box in a single pass is an option in this machine.

  • Technical Data
  • Product Details
  • Options

    6.18 MiniPro Flexo Folder Gluer

    26 in. x 71 in. | 678 mm x 1800 mm

    Minimum folded box6.89 in x 7.87 in.175 mm x 200 mm
    Maximum folded box23.62 in. x 35.4 in.600 mm x 900 mm
    Minimum square box4.7 in x 4.7 in.120 mm x 120 mm
    Maximum square box17.7 in. x 17.7 in.450 mm x 450 mm
    Maximum print surface length23.62 in.580 mm
    Sheet caliper0.06 in. - 0.31 in.1,5 mm - 8 mm
    Maximum speedup to 375 sheets per minute

    6.18 MiniPro Flexo Folder Gluer

    Compare With

    • Top printing mini featuring the patented Corrusleeve ® system for fast printing plate change on all printing units
    • It also features a print section for inside printing of the boxes
    • Machine is EC/CE regulations compliant

    • Additional print sections
    • Extra sleeves
    • Inside print section

    6.18 MiniPro Flexo Folder Gluer


    The 6.18 (26.71) MiniPro Flexo Folder Gluer has been designed to minimize machine stops for order change, by limiting the time needed to printing plate change over. The Corrusleeve® system avoids the need of opening and closing the line to change the printing plate, in total safety for operators. Real Servo Drive technology allows for excellent printing register, slotting and die cutting. The 6.18 (26.71) MiniPro Flexo Folder Gluer features also, as an option, an inline bottom printing unit,which makes this machine the only Finishing line of its size that can print on both sides of the sheet on the same line, in one pass.
