G-Grafix Flexo Folder Gluer

Product Description

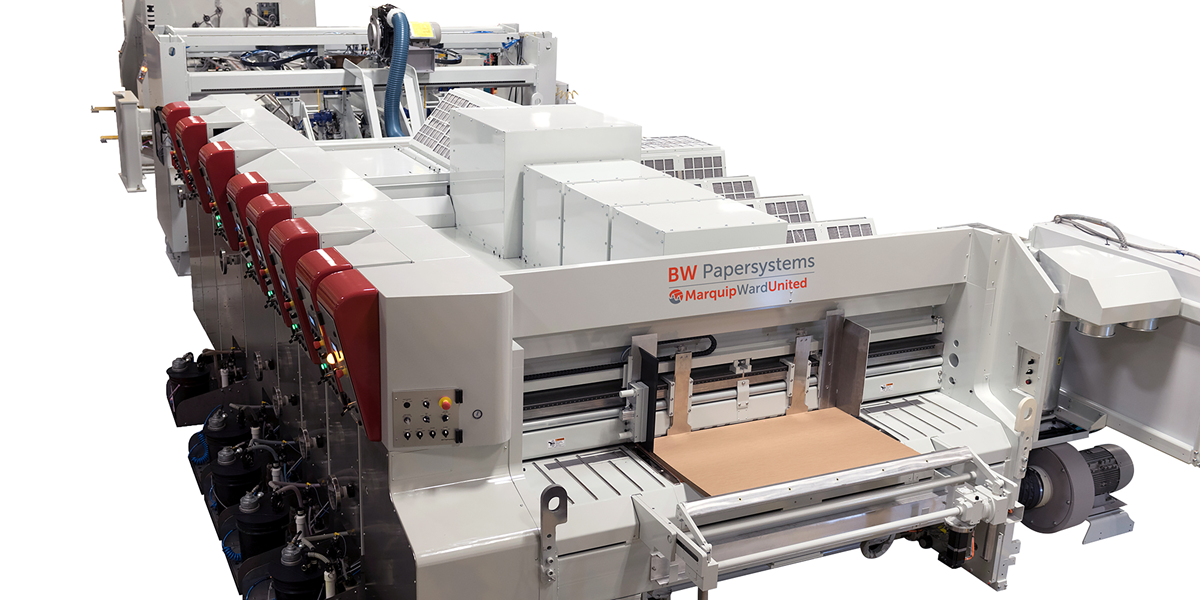

The G-Grafix Flexo Folder Gluer has a simple and robust design that is easier to operate and maintain than previous generations of Flexo Folder Gluers. This alone makes it a valuable addition to your production line; but that’s not all.

The human machine interaction (HMI) is intuitive and user-friendly for both operators and maintenance personnel.

The Shark Anvil Trimming System trims the anvil while the machine is in operation to address uneven anvil wear and reduce downtime.

Learn more about the G-Grafix Flexo Folder Gluer and how it can add value and increase production for you today.

Download a brochure
Product Features

The G-Grafix Flexo Folder Gluer was designed for sophistication and simplicity, based on the legacy of the Ward Rotary Die Cutter, invented by William Ward. Ward machines are known for being productive and robust machines. Today, the rugged Ward reputation lives on as a world leader in manufacturing finishing machinery like the Flexo Folder Gluer from BW Papersystems.

Quality

Feeders, vacuum control, and full print wrap all influence the quality of the product.

Low Cost of Ownership

A lower total cost of production, combined with less time needed for maintenance, and decrease waste.

Productivity

Creating shorter lead times for increased productivity with Folding, Die-Cutting, quick set-sup, and module concept.

Increase Market Share

Making unique boxes for a stronger competitive position with inside and outside printing in a single pass.

  • Technical Data
  • Product Details
  • Options

11500 G-Grafix Flexo Folder Gluer

37.5 in. x 96 in.   |   950 mm x 2440 mm

Minimum folded box11.5 in. x 11.75 in.292 mm x 299 mm
Maximum folded box35 in. x 48 in.889 mm x 1220 mm
Minimum square box6.125 in. x  6.125 in.155 mm x 155 mm
Maximum square box24 in. x 24 in.610 mm x 610 mm
Maximum print surface length92.5 in.2350 mm
Sheet caliper.04 in. – .4 in.1 mm – 10 mm
Maximum speedup to 350 sheets / minute

12600 G-Grafix Flexo Folder Gluer

50 in. x 113 in.   |   1270 mm x 2870 mm

Minimum folded box13.5 in. x 11.75 in.343 mm x 299 mm
Maximum folded box45 in. x 53.5 in.1143 mm x 1359 mm
Minimum square box7.75 in. x  7.75 in.197 mm x 197 mm
Maximum square box26.75 in. x 26.75 in.679 mm x 679 mm
Maximum print surface length107 in.2718 mm
Sheet caliper.04 in. – .4 in.1 mm – 10 mm
Maximum speedup to 250 sheets / minute

16000 G-Grafix Flexo Folder Gluer

66 in. x 125 in.   |   1676 mm x 3175 mm

Minimum folded box18 in. x 12.25 in.457 mm x 311 mm
Maximum folded box61 in. x 61 in.1549 mm x 1549 mm
Minimum square box8.125 in. x  8.125 in.206 mm x 206 mm
Maximum square box30.5 in. x 30.5 in.775 mm x 775 mm
Maximum print surface length118.75 in.3016 mm
Sheet caliper.04 in. – .4 in.1 mm – 10 mm
Maximum speedup to 200 sheets / minute

G-Grafix Flexo Folder Gluer

Lead-Edge Feeder with Extended Feed
The MarquipWardUnited Extended Feed Lead-Edge Feeder combines long wearing urethane feed belts with extreme gripping characteristics, a vacuum table, low crush feed rolls, and an extended stroke to provide registration and maximum sheet control while maintaining physical and aesthetic sheet quality. An optional Variable Stroke Feeder is available to minimize board crush.

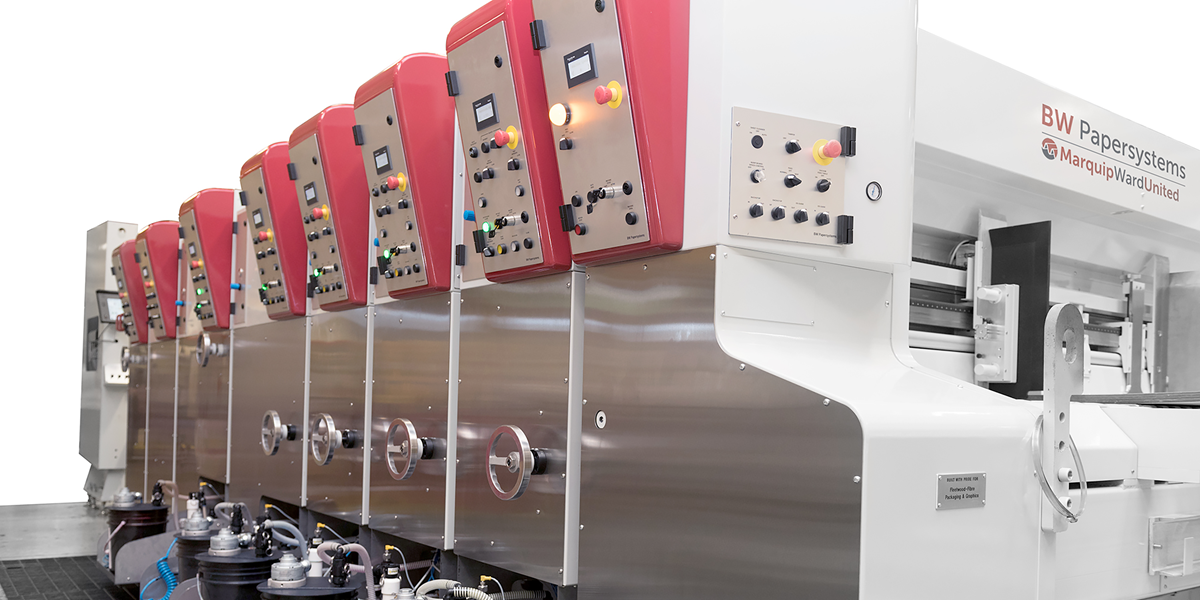

Flexographic Print Section
The MarquipWardUnited flexographic print station provides precision control of registration by a harmonic drive register system. Impression, sheet transfer, and ink metering provide the capability to print top quality, value-added: process, fine screen, and block work with quick and easy changeover for specific jobs.

Vacuum Transfer Print Stations
This transfer system provides constant surface speed for life of the belt. This minimizes problems of warped board and enhances print registration.

Folding Section
The folding rails allow for a gentle, gradual rate of fold for quality and consistency. A vacuum over the entire rail length dramatically reduces fishtail and folder jams. The folding rods and holders provide increased range of motion, more ergonomic adjustment and better durability.

Forming and Ironing Wheels
A proper score is essential to produce a square box and acceptable manufacturer’s joint. The Forming Wheels pressure the box to achieve the desired joint gap and the Iron Wheels suppress the boxes to give a consistent edge and 'memory' to the fold.

Counter Ejector
MarquipWardUnited offers a top loading counter ejector on the G-Grafix for an economical, simplistic method for stacking, counting and ejecting bundles.

A Legacy of Durability
The G-Grafix line maintains the great quality of high- performance, accurate feeders, rugged rotary die cut sections and the ability to continuously handle a wide-range of product designs and configurations.

  • Inside Printing
  • Serrapid Quick Mount Die System
  • Chambered Doctor Blades
  • Servo-Driven Die Cutter
  • Shark Anvil Trimmer
  • Variable Stroke Feeder
  • IR Dryers
  • Trim Chopper
  • Folder Dust Collection
  • Wide Counter Ejector
