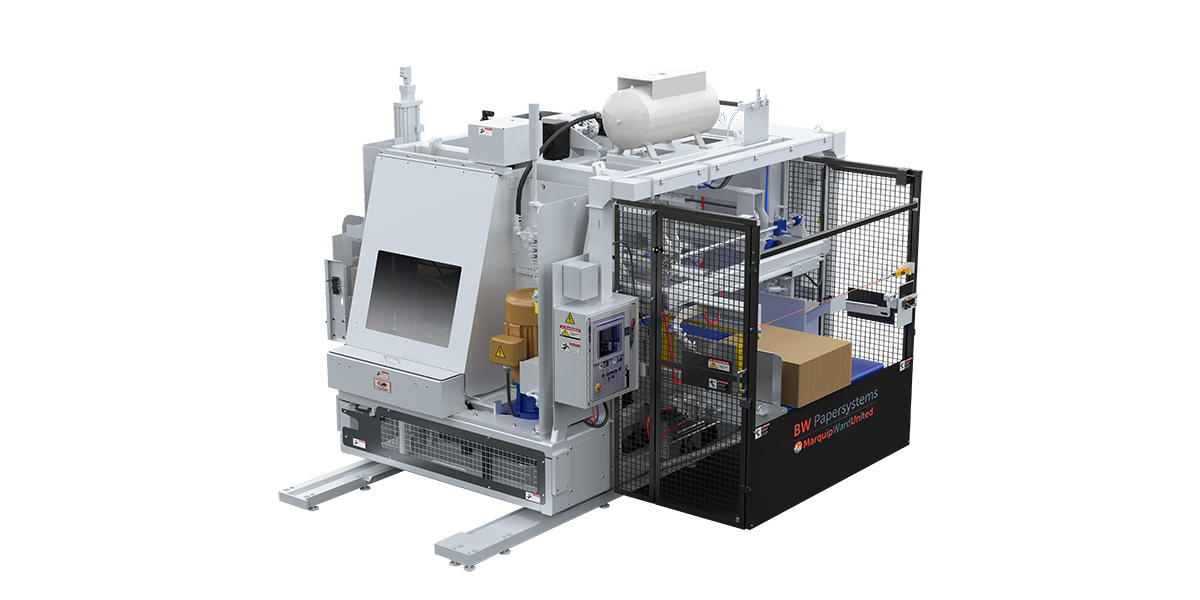

Twin Box Slitter® for Converting

Product Description

Make your corrugated box production process more efficient with the Twin Box Slitter (TBS).

The Twin Box Slitter® is a unique converting machine. The addition of a Twin Box Slitter enables box plants to double the production of Flexo Folder Gluers by running two-up boxes. These boxes are slit by the Twin Box Slitter creating two boxes.  Once the boxes are separated, they are ready to be bundled. This process allows manufacturers with a mid-sized Flexo Folder Gluer to efficiently create a wide range of corrugated box sizes from very small to large on one machine with the potential to double productivity at the same time. Learn more about expanding Flexo Folder Gluer box productivity through the addition of a Twin Box Slitter.

A little history on the Twin Box Slitter: It was invented by Marquip, which became, MarquipWardUnited , and is now BW Papersystems, an industry-leading manufacturer of machines for businesses in the sheeting, converting, and corrugating industries.

Continue reading to learn more about how a Twin Box Slitter can expand your product’s Flexo Folder Gluer box size capabilities and machine productivity.

Download a brochure
Product Features

The Twin Box Slitter is a unique converting machine. The addition of a Twin Box Slitter enables box plants to double the production of Flexo Folder Gluers by running two-up boxes. These boxes are slit by the Twin Box Slitter creating two boxes. Learn more about expanding Flexo Folder Gluer box productivity through the addition of a Twin Box Slitter.

Double Production

The addition of a Twin Box Slitter enables box plants to double the production of Flexo Folder Gluers by running two-up boxes.

Size Diversity

The addition of a Twin Box Slitter increases your flexo folder gluer’s size range to make boxes previously only capable on a mini.

Slit Quality

Industry-proven razor-slitting technology that is self-sharpening. Sharp slit cut can boost box compression performance.

Systems Integration

The Twin Box Slitters integration with the Flexo Folder Gluer streamlines your production process and doubles your yield.

  • Technical Data
  • Product Details
  • Options
 MinimumMaximum

Box width to be slit, also referred to as the TBS machine direction

14 in.

Creating 2 - 7 in. boxes

355mm

Creating 2 - 178 mm boxes

50 in.

Creating 2 - 25 in. boxes

1270 mm

Creating 2 - 635 mm boxes

Box length to be slit (TBS cross-machine direction)

12 in.

305 mm42 in.1066 mm
Maximum box length (TBS cross-machine direction) to “Pass Through” TBS without slitting____50 in.1270 mm




    Twin Box Slitter® for Converting

    Compare With

    BW Papersystems Twin Box Slitter offers its operators many benefits thanks to the machine’s highly engineered design. In addition to increasing the speed of your manufacturing process, a Twin Box Slitter offers:

    • Increased flexo folder gluer productivity
    • Industry-proven razor-slitting technology
    • Self-sharpening
    • Improved bundle stability
    • Fast machine setup
    • Sharp slit cut can boost box compression performance
    • Interface that can integrate with virtually any Flexo Folder Gluer
    • Enables production of two-up half slotted containers (HSCs)
    • Run smaller boxes



    The Twin Box Slitter from BW Papersystems has two machine options available. These optional add-ons are:

    • Cross-Machine Direction Transfer System
    • Spare Parts packages

    Twin Box Slitter


    Double the Productivity of your Flexo Folder Gluer with our Twin Box Slitter!

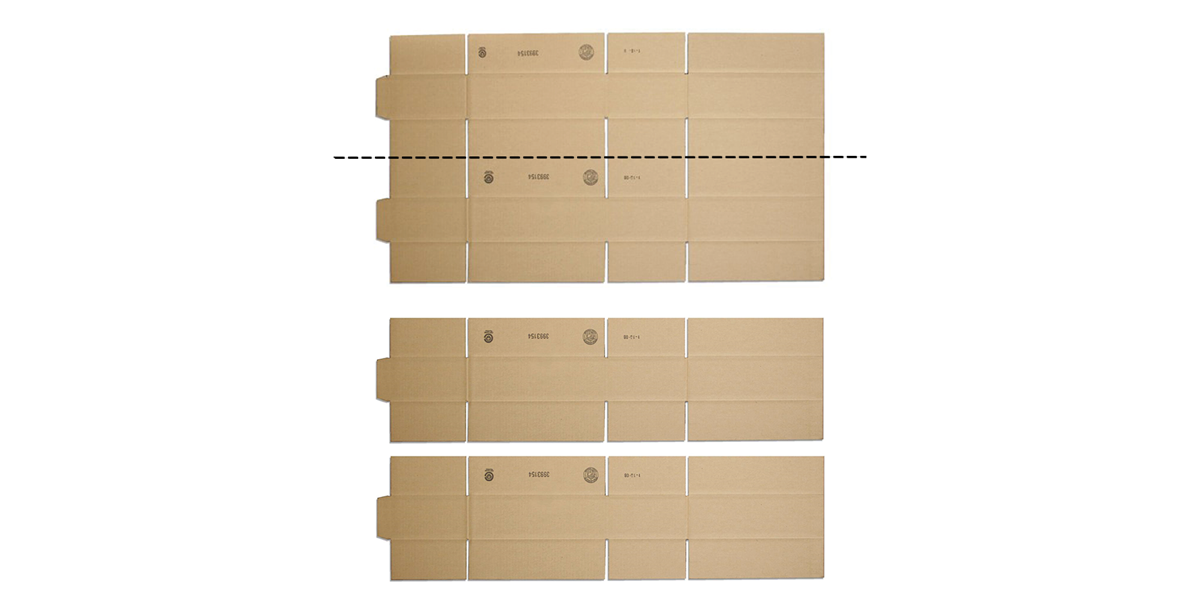

    The Twin Box Slitter separates the finished product by slitting it down the middle, creating two boxes out of one fed sheet. Once the boxes are separated, they are ready to be bundled. This process allows manufacturers with a mid-sized Flexo Folder Gluer (FFG) to efficiently create a wide range of corrugated box sizes from small to large on one machine with the potential to double productivity at the same time.
