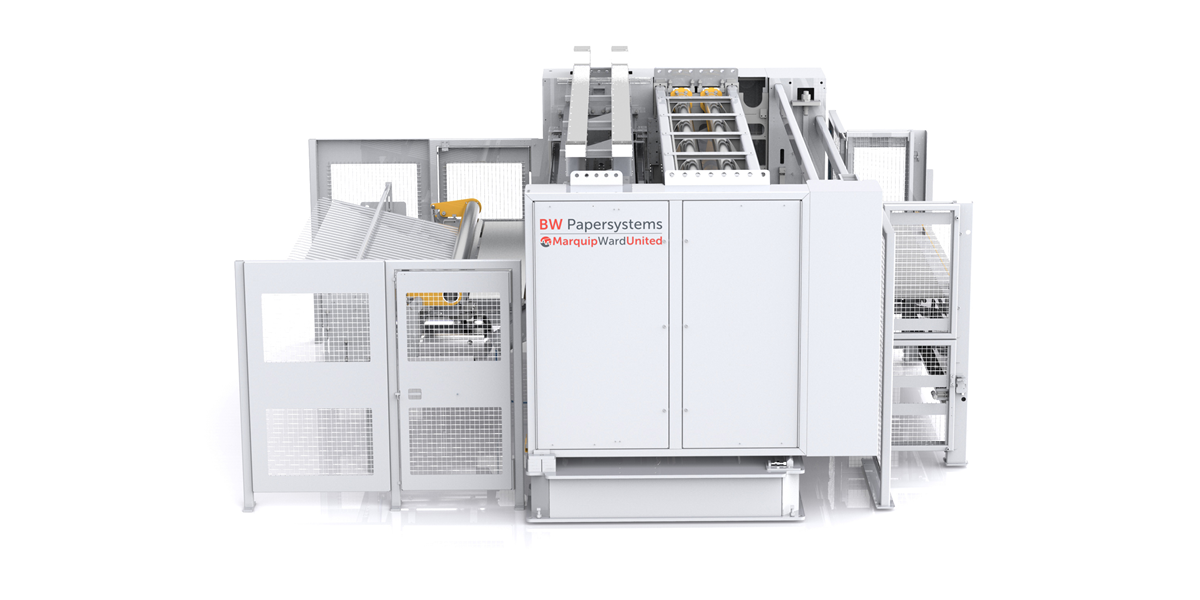

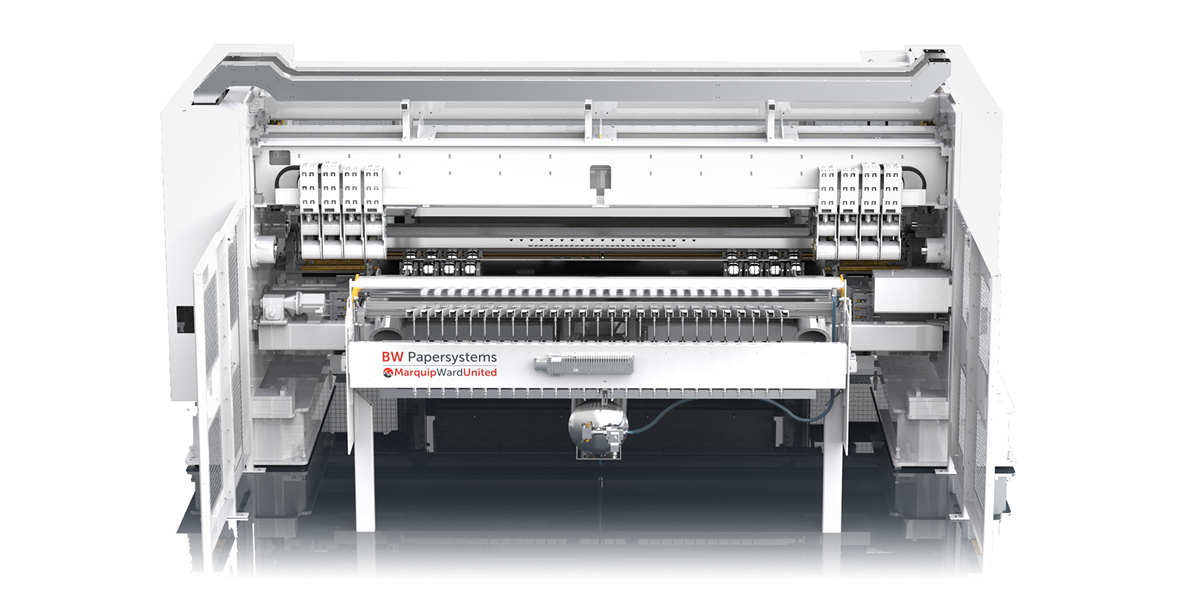

RPS-Express Slitter-Scorer

Product Description

The Robotic Plunge Slitter/Scorer has multiple slit and score sections to set up tools on one section while tools on another section are operating. At order change, the tools will quickly lift out of the board line, while the new order tools plunge in. Dry end order changes are easily performed at speeds of 300 MPM (1000 FPM).

The Trim Switch feature ensures the downstream slitting section closest to the trim chutes starts the new order trim. This eliminates trim jams at order change and allows very narrow trim to be scheduled.

Download a brochure

Parts

Maintenance

Upgrades

Product Features

Superior slit quality with the industry’s narrowest trim specification
Industry-leading head setup accuracy
Superior Score Flexibility
Narrow score tool spacing to yield maximum scoring flexibility
Efficient production of short orders
Small footprint, single station machine
Simple design for ease of access and low maintenance requirements

Superior Slit Quality

BW Papersystems slitters are corrugated industry’s standard for slitting excellence with features such as individual on-head sharpening systems, rotating lower anvil supports, and use of a very thin blade allows significant payback.

Industry Leading Accuracy

The individual slit and score tools are accurately positioned in the cross-machine direction by a simple but fast robust robot.

Superior Score Flexibility with narrow spacing

Multiple score sections can be run to achieve zero score spacing and greater variety of score tool profiles. Different score types can be fitted to a single score axis. Three-in-One score profiles available.

Short Order production

A dual plunge station configuration with fast robotic setup ensures short orders can be run back-to-back.

Dry end order changes are easily performed at speeds of 300 mpm (1000 fpm)
The Trim Switch™ feature ensures the downstream slitting section (adjacent to the trim chutes) always starts the new order trim.
Tool setup accuracy of +/- 0.4 mm (0.015”) allows you to consistently meet critical box specifications.
Guards swing away to provide improved access to the tooling heads
Touch-screen operator interface enhances control

Industries narrowest trim specification allows significant payback in trim waste reduction.
Line Speed production quality order changes improve productivity.
Industry-leading head setup accuracy.
Excellent operator & maintenance access.
Small footprint, single station machine.
Simple design with low maintenance requirements.
Narrow score tool spacing to yield maximum scoring flexibility.
Excellent slit quality through the use of the rotating anvil supporting the board at the point of cut.
Efficient production of short orders.

Additional automatic setup score section
Up to 32 score lines per section
Centered trim shoot option for split roll operation
Manual setup section for custom scores
