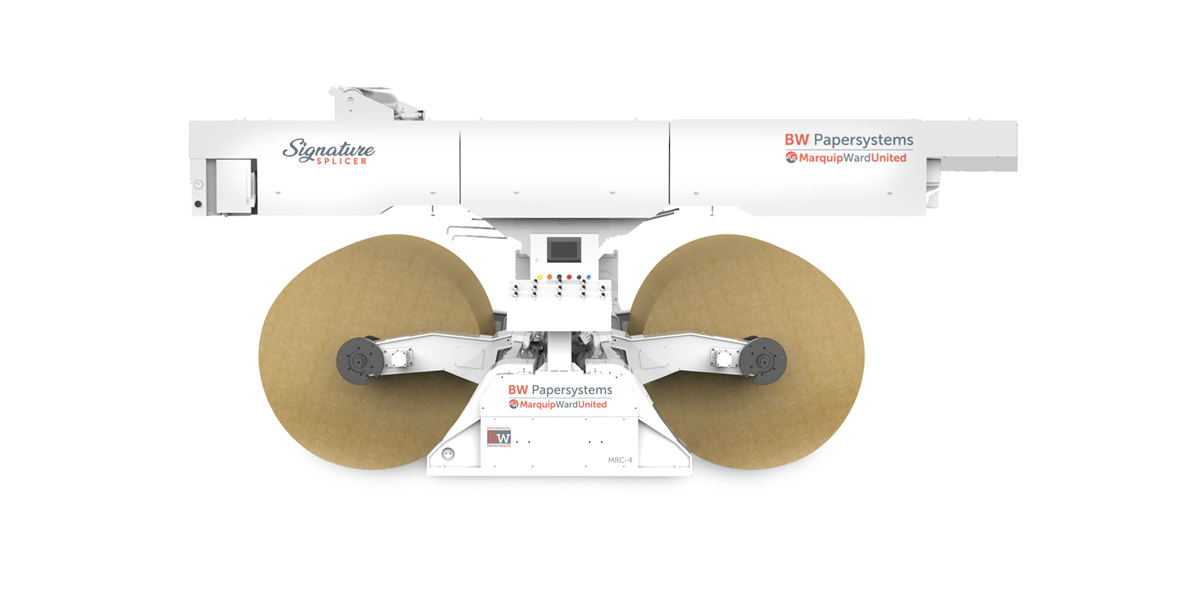

MRC 4 Roll Stand

Product Description

BW Papersystems Roll Stands provide the performance and features for more efficient wet end operations. Fast arm movements and simple operator controls facilitate rapid roll changes. The MRC 4 Roll Stand is a robust, reliable, high-value and low maintenance Roll Stand. Special variations such as ‘split-roll’ or narrow web types are available. An automatic roll load version ARC5 is also available.

  • Quick roll loading and unloading allows short wet end orders to be run efficiently
  • Disc brakes and high-speed low friction spindles for efficient running of butt rolls
  • Small diameter roll pickup capability
  • Integrated controls platform for regular operations and special options
Download a brochure
Product Features

Quick roll loading and unloading

Fast arms movements and intuitive operator controls make roll loading and unloading a simple and quick process. Optional core ejection devices assist the operator to remove butt rolls or cores without manual intervention.

Disc brakes and high-speed low friction spindles

Pneumatic disc brakes interfaced to the Splicer for excellent web tension control. Low drag spindles rated at 670mpm/2200fpm assist the running of very small butt rolls.

Small diameter roll pickup capability

Roll diameters as low as 305mm/12” can be chucked up without complicated roll pusher devices. Allows operators to use all paper reels at their disposal and avoid unnecessary paper waste.

Integrated controls platform

The controls platform monitors and controls every action of the MRC4.
  • Sensors that detect chuck rotation, interfaced to a special safety system.
  • Interface to the Splicer ensures perfect web tension for all paper reel sizes.
  • Interlink to the track and trolly systems for accurate paper reel positioning.
  • Low energy consumption by turning off the hydraulic motor when in use.
  • Technical Data
  • Product Details
  • Options

 ImperialMetric
 Lifting Capacity1100 lb5000 kg
Minimum Roll Width - 98.4 in. | 2500 mm36 in.915 mm
Minimum Roll Width - 112 in. | 2800 mm46 in.1168 mm
Minimum Roll Pickup Diameter12 in.305 mm
Arm Spacing in the Machine Direction100 in.2540 mm

MRC 4 Roll Stand

  •  Lifting Capacity
  • Minimum Roll Width - 98.4 in. | 2500 mm
  • Minimum Roll Width - 112 in. | 2800 mm
  • Minimum Roll Pickup Diameter - Manual
  • Minimum Roll Pickup Diameter - Automatic
  • Arm Spacing in the Machine Direction
  • 5000 kg
  • 915 mm
  • 1168 mm
  • 305 mm
  • 0 mm
  • 2540 mm
  • 1100 lb
  • 36 in.
  • 46 in.
  • 12 in.
  • 0 in.
  • 100 in.

Compare With

  • Quick roll loading and unloading allows short wet end orders to be run efficiently.
  • Pneumatic disc brakes and high-speed spindles facilitate the efficient running of butt rolls.
  • Low energy consumption with automatic shut off of the hydraulic pump motor.
  • Includes track/trolley operator controls and interface to provide seamless operation with BW Papersystems and other common tracks.
  • Vital for Efficient Wet End Operations
  • Efficient running of Butt Rolls
  • Rigid mechanical design with solid steel torque shafts provide superior torsional
    characteristics
  • Oil-impregnated, low-fiction nylon bushings on pivot points and linear slides ensure
    smooth operation
  • Arms that slide on precision ground keys offer excellent durability and corrosion
    resistance

  • Vertical Bridge Supports - Operator and drive side vertical bridge supports with
    horizontal I-Beam to support bridge from roll stand
  • Track/Trolley system
  • Corestripper (included with automatic loading option)
  • Narrow Arm Spacing: 2362 mm (93 inch)
  • Split web capability with offset feature
  • Existing splicer Interface kit
  • Vertical Bridge supports
