P 15-90 Exercise Book Machine

Product Description

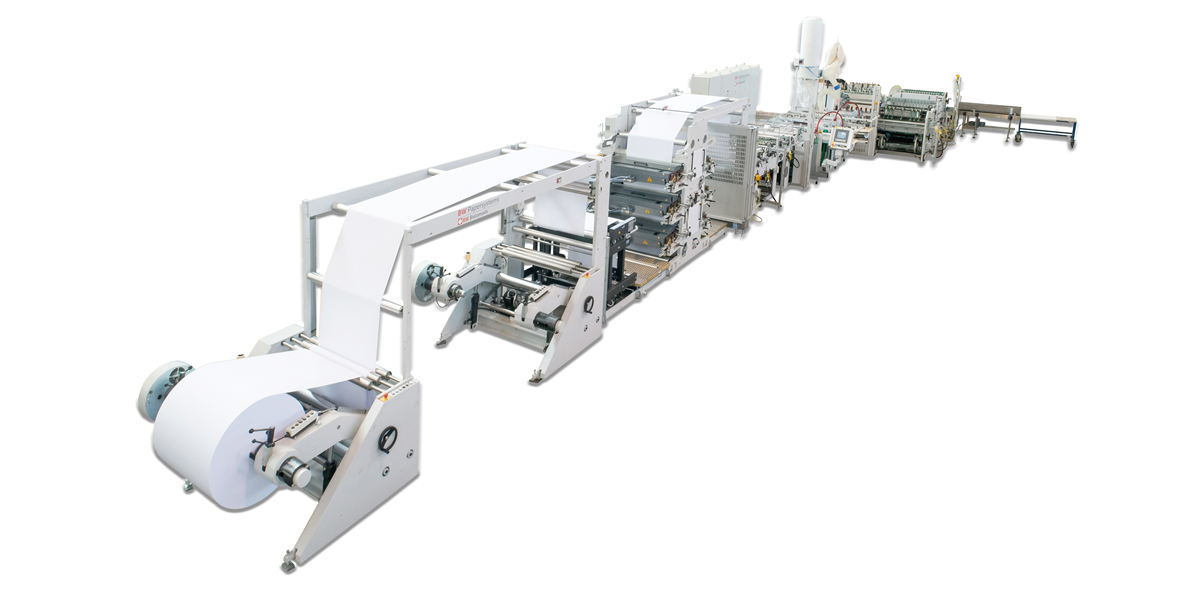

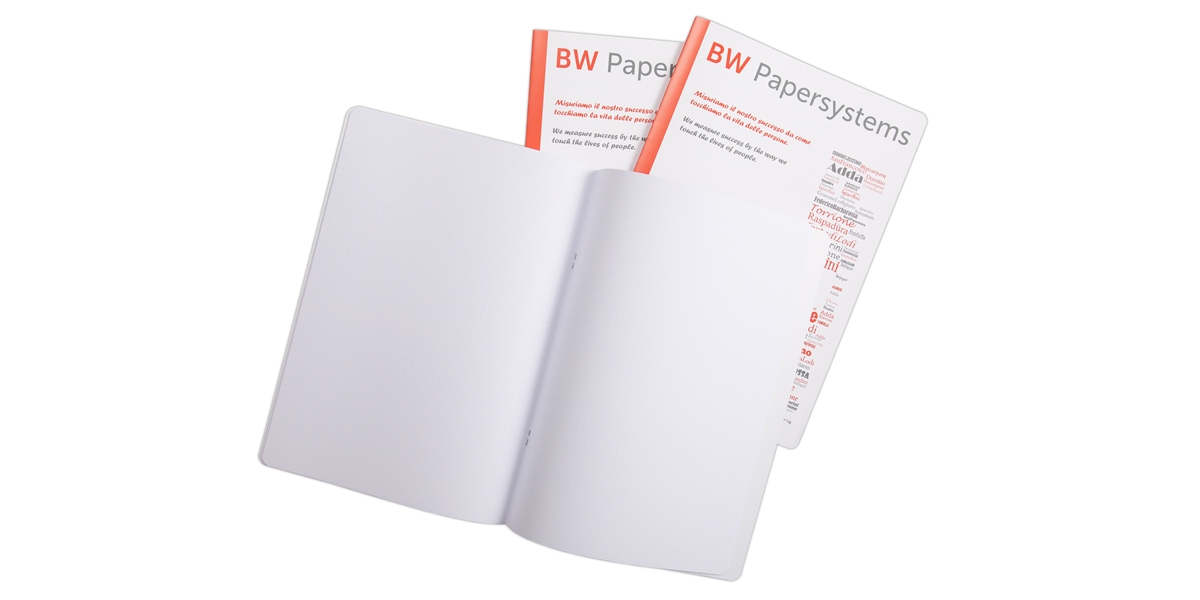

The fully automatic P 15-90 Excercise Book Line with max. paper reel width of 1130 mm (44 1/2 in. ) is a highly sophisticated solution for the fabrication of wire-stitched exercise books, ruled and unruled preproducts, folded sheets or country specific finished products. It can be used for medium and large runs, from reel to the finished product.

Basic Excercise Book Line consists of a single reel stand, flexo ruling, cross cutting, overlapping, collecting and counting, sheet feeding, wire stitching, folding, spine pressing, trimming of long sides, cutting into individual products, collecting of exercise book stacks and straight-on delivery.

Easy operation and minimal maintenance

A high proportion of mechanical adjustments guarantees easy operation as well as minimal maintenance and repair work. This leads to a high efficiency rate (70% or more) as downtime is minimized.

Modular system

The modular concept of our exercise book machines offers you a complete range of paper converting processes: printing, cutting, counting, collecting, stitching, folding and finishing. All units are designed to complement each other so that a module can be added as and when your growing business and your customers require it.

Product Features

Fully Automatic Exercise Book Making Machine

Medium to Large Runs

Optimal exercise book line for medium and large runs.

Efficiency

High productivity, quality and flexibility.

Upgrades

Additional upgrades possible.

Operator-Friendly

Cover sheet feeders mounted at the side for easy access.
  • Technical Data
  • Product Details
  • Options



ImperialMetric
Web speedmax.1640 fpn500 mpm
Paper reel widthmax.
min.
44 1/2 in.
23 5/8 in.
1130 mm
600 mm
Paper reel diametermax.60 in.1525
Paper weightmax.
min.
250 gsm
45 gsm
Printing circumferencemax.28 1/3 in.720 mm
Adjustment of printing length 1/4 in. (1/8 in.)5 mm (2,5 mm)
Cutting frequency 1600/min
Cutting lengthmax.
min.
28 1/3 in.
7 1/16 in.
720 mm
180 mm
Sheet countmax.
min.
50
4
Cover weightmax.
min.
300 gsm
60 gsm
Number of stitcher headsmax.15
Book thickness/foldedmax.1/2 in.12 mm
Book size bound edgemax.
max.
min.
44 1/2 in.
47 1/4 in.
5 1/8 in.
1130 mm
1200 mm
130 mm
Book size unbound edgemax.
min.
9 in.
3 1/2 in.
230 mm
90 mm
Converting cyclesmax.80/min / 100/min

  • Cover sheet feeders mounted at the side for easy access
  • Very good accessability through Z-shape especially during deep pile operation

  • Two web operation
  • Nonstop reel change including splice detecting and discharge
  • Automatic web guiding
  • Quick change for flexo sleeves
  • 4/4 flexo ruling
  • Micro perforation
  • Electronic cut-off and sheet count control
  • File hole punching
  • Blotting paper from reel

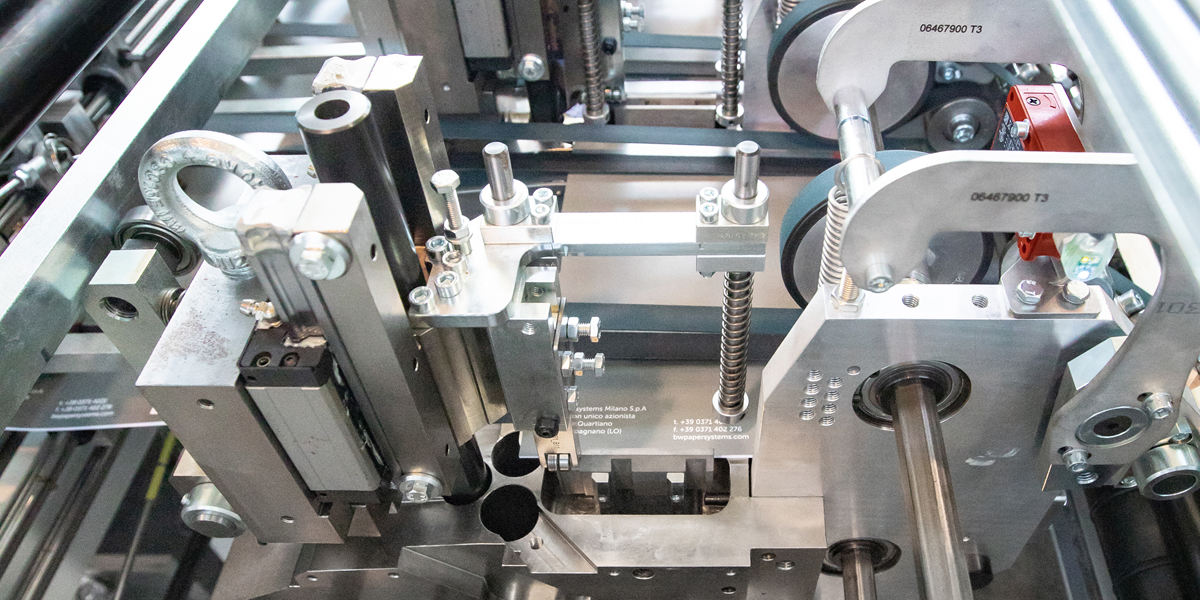

  • Corner rounding
  • Cover feeding from reelstand
  • Extension with shrink wrapping machine
  • Deep pile

BW Bielomatik P 15-90 / P 25-90 Exercise Book Machine


Fully automatic excercise book lines from BW Bielomatik are highly sophisticated solutions for the fabrication of wire-stitched exercise books, ruled and unruled preproducts, folded sheets or country specific finished products.

BW Bielomatik presents P 15-90 / P 25-90, the fully automatic exercise book line.
