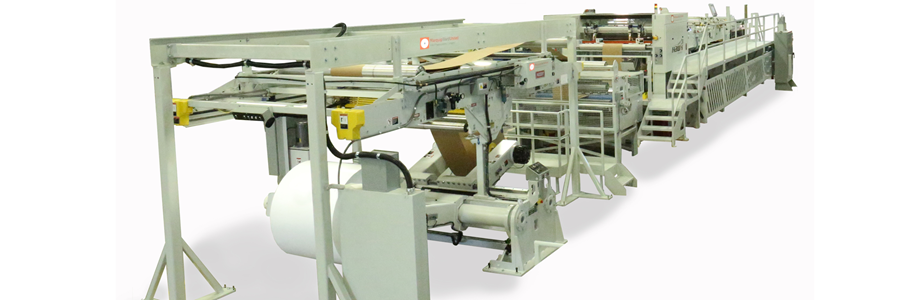

Hawk Dual Rotary Sheeter

Product Description

The flexible Hawk Sheeter is the latest addition to a broad range of cost effective sheeting solutions. This medium-sized folio sheeter is designed to meet the needs for the folding carton, small printers, paper merchants and the converting industries.

  • Standarized dual rotary sheeter
  • Fixed width 1650 mm (65 in)
  • 100% Metric Design
  • Incorporates legendary Marquip knife technology
  • Great stack quality due to the lateral jogging on stacker
  • Easy to operate and easy to maintain
  • Superior knife cut quality at all speeds
  • Better HMI diagnostics with better remote support options
  • Designed with no compromise in quality
Product Features

The flexible Hawk sheeter is an efficient medium-sized folio sheeter for folding carton plants, small printers, paper merchants and the converting industries.

Great Stack Quality

With lateral jogging on the stacker the Hawk sheeter ensures great stack quality.

Superior Knife Cut Quality

This sheeter incorporates legendary Marquip knife technology, providing superior knife cut quality at all speeds.

Simple Operation

The Hawk sheeter is easy to operate and to maintain.

Advanced Diagnostics

Intelligent HMI (Human Machine Interface) diagnostics offer remote support options on the Hawk sheeter.

  • Technical Data
  • Product Details
  • Options
MetricImperial
Sheet Widthmax.1650 mm65 in
Reel Widthmax.1830 mm67 in
Reel Diametermax.
optional
1850 mm
2100 mm
72 in
83 in
Reel Weightmax.3400 kg7500 lb.
Core Diametermin.
max.
76 mm
305 mm
3 in
12 in
Speedmax.300 m/min980 ft/min
Length AccuracySingle Web+ / - 0,38 mm (0.015 in)
Length AccuracyMulti Web+ / - 0,5 mm (0.020 in)
Knifemax.1000 gsm
Slittermax.600 gsm
Sheet Lengthmin.400 mm15.75 in
Sheet Length
optional
1650 mm
2080 mm
65 in
82 in

  • Low level reel trolleys are installed to allow safe and easy reel loading.
  • The dual position shaftless unwind loads reels directly from the floor or loading trolley.
  • The decurler section incorporates 2 or 4 x dual diameter roller decurlers.

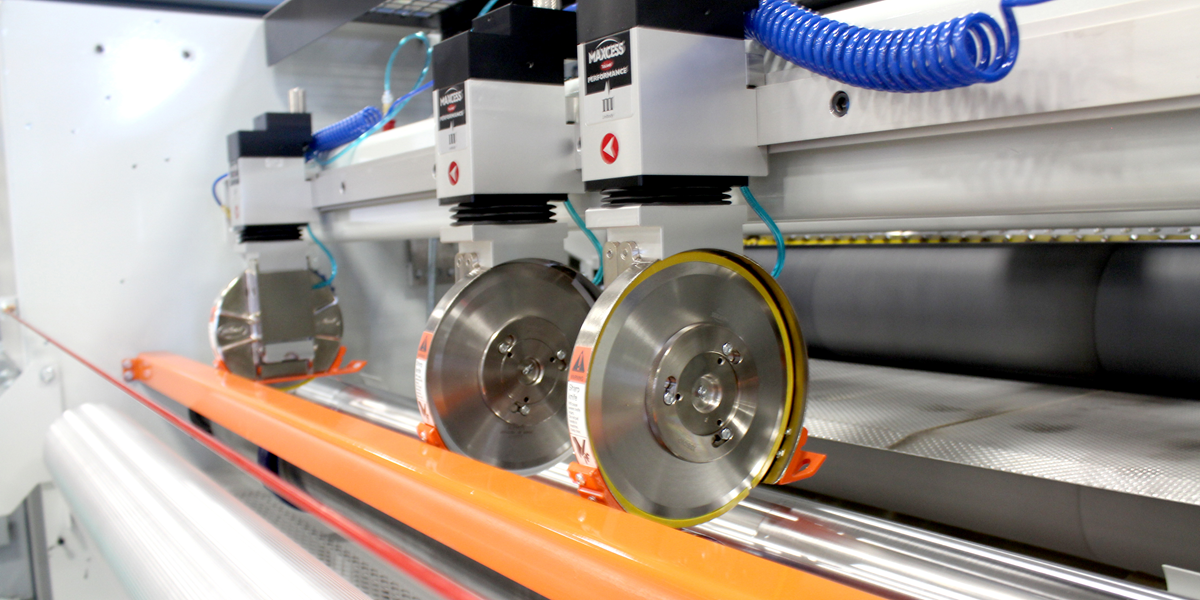

  • A 2 position slitting system.
  • The most advanced Sheeter knife in the world
  • Pulsed airjets at the overlap section provides better reliability at higher running speeds
  • The stacker provides side jogging for great stack quality
  • Advanced PC based control system. The HMI has intuitive clear functionality and advanced on screen diagnostics

  • A two or four position edge guiding system
  • Sensors detect joints in the web and automatically reject them to the waste bin
  • Full width dual sided web cleaner
  • Reject gate
  • Tab inserters

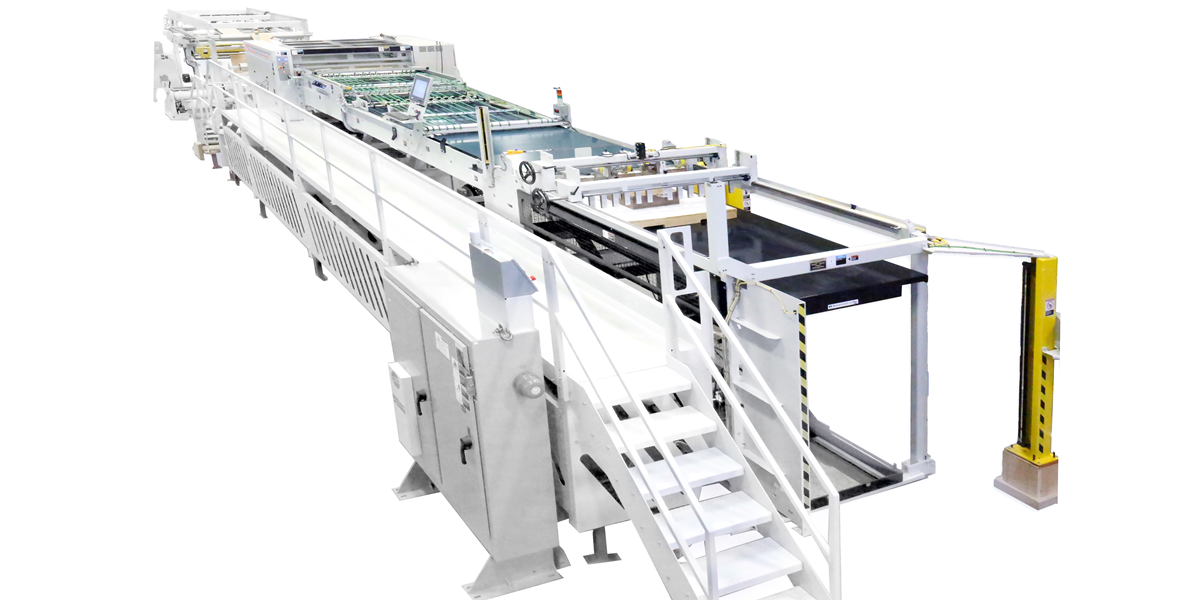

Hawk - a medium-sized Folio Sheeter for folding carton and paper converter


The Hawk Sheeter by MarquipWardUnited is a medium-sized folio sheeter and designed to meet the needs for the folding carton, small printers, paper merchants and the converting industries.

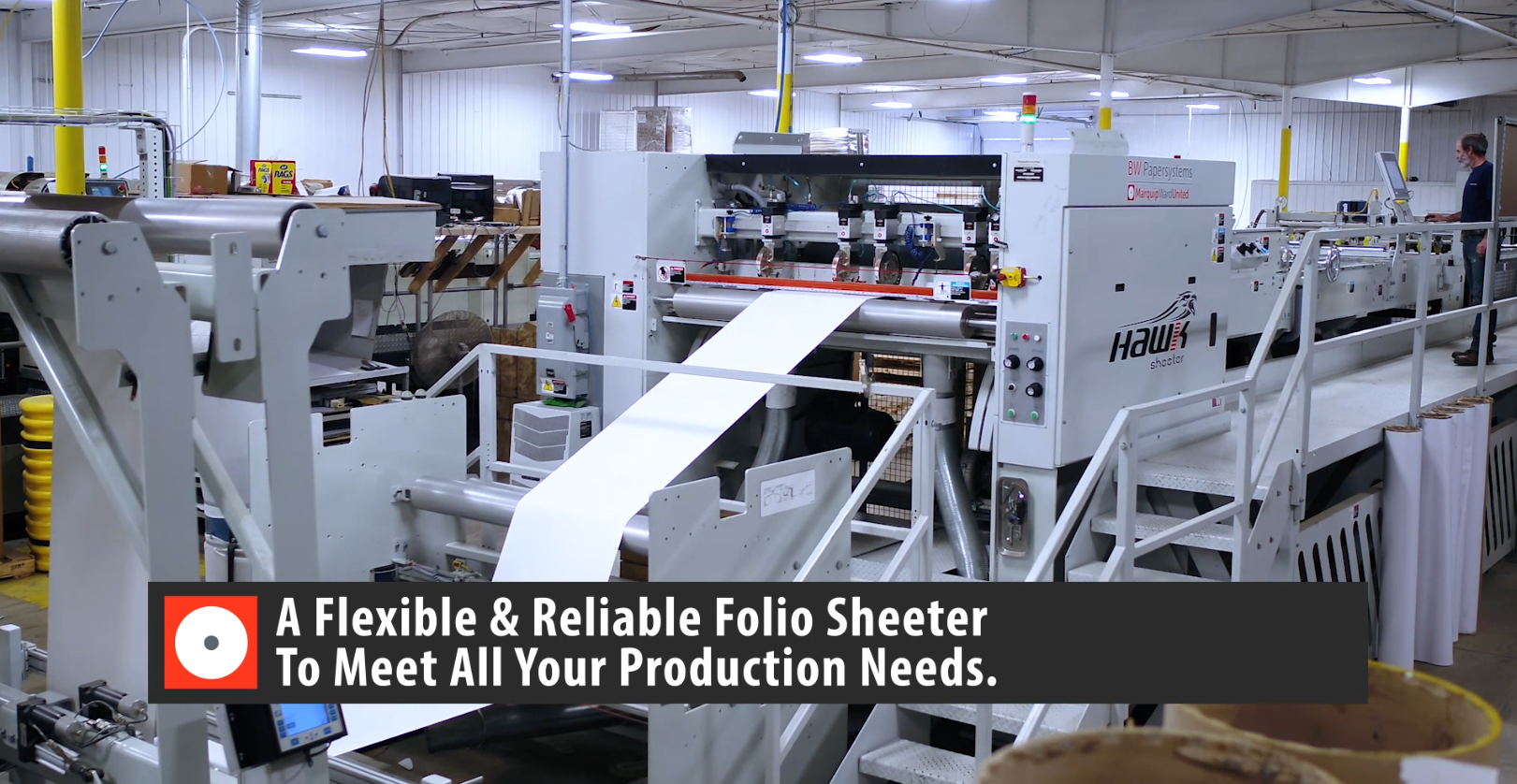

Watch Video
