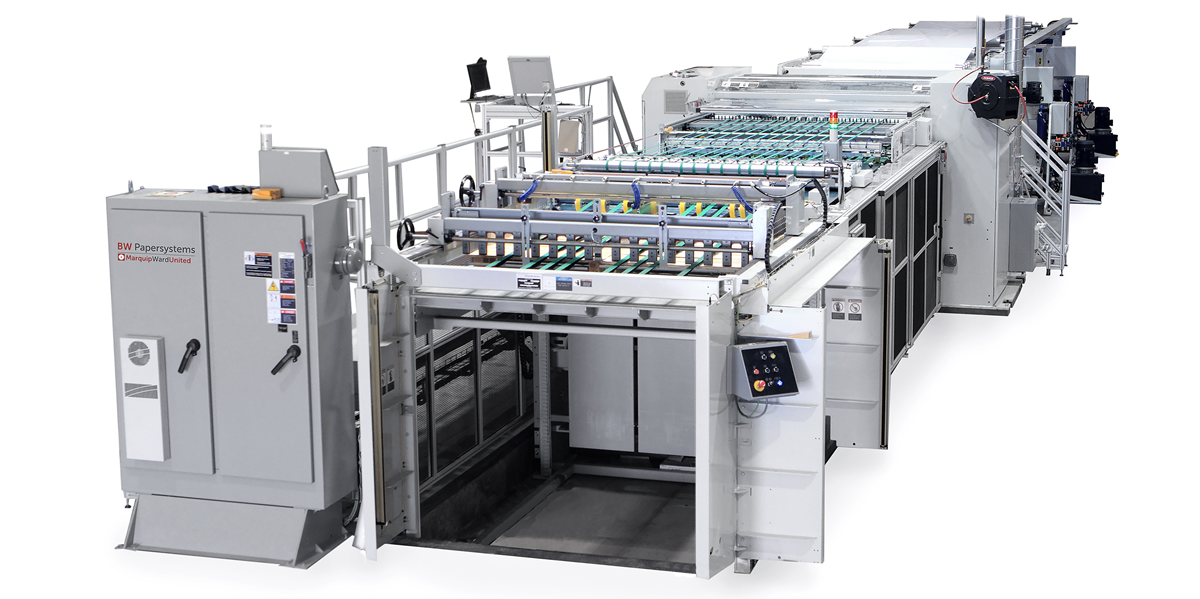

SheetWizard 1650 (65 in) / 1850 (73 in) Dual Rotary Sheeter

Product Description

BW Papersystems is a leading manufacturer of products used by the paper sheeting, and paper converting industries. Our folio-size sheeters cut and stack paper and board of a variety of sorts.

With superior cut quality and accuracy, the SheetWizard dual rotary sheeter from BW Papersystems' brand MarquipWardUnited is ideal for paper and board.  Contact BW Papersystems to find out more about the SheetWizard Sheeter.

MarquipWardUnited Knife Technology

The brand MarquipWardUnited stands for an extensive range of sheeting equipment. The SheetWizard from BW Papersystems incorporates the legendary Marquip knife technology.

This advanced engineering technology provides superior cut quality at all speeds.

Marquip knife technology allows specifications up to 1000 gsm. The knife offers on-machine blade sharpening, low power consumption and the best speed curve in the industry. In addition, pulsed air jets at the overlap section provide better reliability at higher running speeds.

Learn more about the  MarquipWardUnited brand and its advanced engineering.

SheetWizard Sheeter Features

The SheetWizard dual rotary sheeter is designed to meet different requirements for your application. The standardized sheeter comes with dual rotary knife technology. With superb cut quality up to 1000 gsm, the machine runs a maximum speed of 335 mpm (1100 fpm).

The speed curve is optimized for paper and board. The compact design and advanced overlap systems allow for faster speeds with reduced marking. With an automatic pallet change, the SheetWizard provides efficiency to your production line.

SheetWizard Sheeter Applications

The MarquipWardUnited SheetWizard offers flexible and cost-effective configurations to suit many paper and board converters, mills, and folding carton plants. It’s a versatile sheeting solution, all designed around the unique Marquip dual rotary knife technology. This product is suitable for a variety of paper and board applications, including multi-web products.

Technical Data

The SheetWizard dual rotary sheeter is a 1650 mm (65 in) or 1850 mm (73 in) wide sheeting machine, with sheet lengths ranging from minimum 400 mm (15.75 in) to a maximum of 1650 mm (65 in). The unique dual rotary knife cuts paper and board qualities of up to 1000 gsm and the slitter accepts up to 600 gsm. Learn more on the SheetWizard specifications below.

Product Detail

Superior Knife Performance

To achieve its superior knife performance, the SheetWizard sheeter’s dual-rotary knife uses tangentially mounted blades to reduce the unsupported blade length. The machine also sharpens blades while in use. The result: longer blade life. The use of liquid-cooled motors and drives reduces the power need and noise level.

Flexibility

Knife cylinders are designed for higher speeds on short sheets. For sensitive material, the sheeter offers delivery options to avoid surface marking at higher speeds. Delivery options include vacuum sheet tail arrest, driven soft nip snubber tapes, and more.

Standard Features

  • 460 mm (18 in) diameter pull roll system on multi-web applications
  • PC based control system with menu storage and remote diagnostics

Machine Options

The SheetWizard is suitable for a variety of different products and applications. With a wide range of options, BW Papersystems ensures the machine meets your exact requirements. Machine options include:

  • Programmable decurling
  • Automatic tension control
  • Digital assist or automatic slitter setting
  • Web Cleaning
  • Cut to register
  • Twin cut technology for high speed digital sheeting
  • Reject gate linked to splice detector
  • Quick set up for rapid changes
  • Advanced overlapping for reduced sheet marking

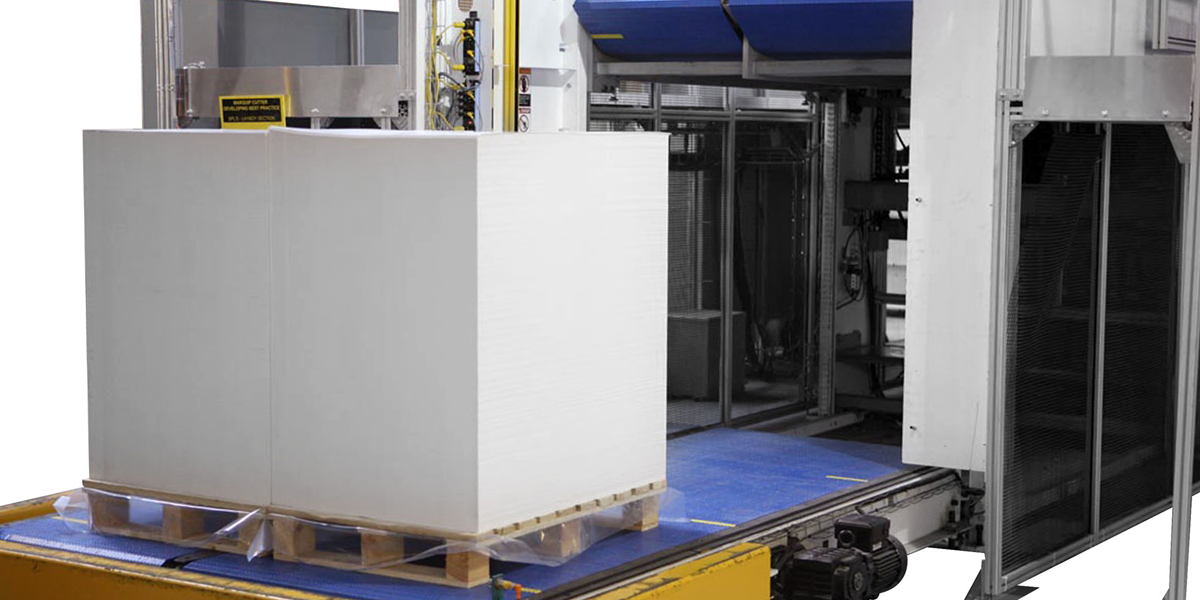

  • Automatic pallet change
  • Pallet configurations to fit your sheeter applications

Partner with BW Papersystems For the MarquipWardUnited SheetWizard Sheeter

With its superior accuracy as a paper and board sheeter, the SheetWizard offers cost-effective configurations to suit your current machinery. Learn more about our advanced machine and dual rotary knife technology. Contact the BW Papersystems team for more information and to request a quote.

Product Features

With superior cut quality and accuracy, the SheetWizard dual rotary sheeter is ideal for paper and board, including multi-web products. Its flexible and cost-effective configurations suit many paper and board converters, mills, and folding carton plants.

Superior Knife Performance

To achieve its superior knife performance, the SheetWizard sheeter’s dual-rotary knife uses tangentially mounted blades to reduce the unsupported blade length. The machine also sharpens blades while in use.

Multi-web Applications

The SheetWizard incorporates a 460 mm (18 in) diameter pull roll system on multi-web applications.

Size Flexibility

Knife cylinders are designed for higher speeds on short sheets. For sensitive material, the sheeter offers delivery options to avoid surface marking at higher speeds. Delivery options include vacuum sheet tail arrest, driven soft nip snubber tapes, and more.

Low Consumption & Noise Level

Liquid cooled motor and drives using less power and creating less noise.

  • Technical Data
  • Product Details
  • Options
MetricImperial
Sheet Widthmax.1650 mm
1850 mm
65 in
73 in
Reel Widthoptional1700 mm
1900 mm
67 in
75 in
Reel Diametermax.
optional
1850 mm
2100 mm
73 in
83 in
Reel Weightmax.3410 kg7500 lb.
Core Diametermin.
max.
76 mm
305 mm
3 in
12 in
Speedmax.335 m/min1100 ft/min
Length AccuracySingle Web+ / - 0,38 mm (0.015 in)
Length AccuracyMulti Web+ / - 0,5 mm (0.020 in)
Knifemax.1000 gsm
Slittermax.600 gsm
Sheet Lengthmin.
max.
400 mm
1650 mm
15.75 in
65 in


SheetWizard 1650 (65 in) / 1850 (73 in) Dual Rotary Sheeter

  • Sheet Width
  • Reel Width
  • Reel Diameter
  • Reel Weight
  • Core Diameter
  • Speed
  • Length Accuracy
  • Length Accuracy
  • Knife
  • Slitter
  • Sheet Length
  • 1650 mm - 1850 mm
  • 1700 mm - 1900 mm
  • 1850 mm - 2100 mm
  • 3410 kg
  • 76 mm - 305 mm
  • 335 m/min
  • +/- 0,38 mm
  • +/- 0,5 mm
  • 1000 gsm
  • 600 gsm
  • 400 mm - 1650 mm
  • 65 in - 173 in
  • 67 in - 75 in
  • 73 in - 83 in
  • 7500 lb
  • 3 in - 12 in
  • 1100 ft/min
  • +/- 0.015 in
  • +/- 0.020 in
  • 1000 gsm
  • 600 gsm
  • 15.75 in - 65 in

Superior Knife Performance
The SheetWizard Sheeter is designed around the unique MarquipWardUnited’s dual-rotary knife. Tangentially mounted blades on the knife reduce the unsupported blade length and with 1000 gsm loading, the blades can be sharpened while in the machine. The stronger supported blades provide cleaner cuts and less vibration, tuning and sharpening for longer blade life.

Flexibility
Delivery options such as vacuum sheet tail arrest and driven soft nip snubber tapes, sensitive materials can be delivered at higher speeds without surface marking.

Standard Features:
  • Knife cylinders designed for higher speeds on short sheets
  • 460 mm (18 in) diameter pull roll system on multi-web applications
  • PC based control system with menu storage and remote diagnostics
  • Liquid cooled motor and drives using less power and creating less noise

  • Programmable decurling
  • Digital assist or automatic slitter setting
  • Web Cleaning
  • Cut to register
  • Reject gate linked to splice detector
  • Advanced overlapping for reduced sheet marking
  • Automatic pallet change enables the SheetWizard sheeter to be configured for the widest range of sheeter applications with future upgrading always possible
