Slitter/Scorer Slit Hex Drive Shaft

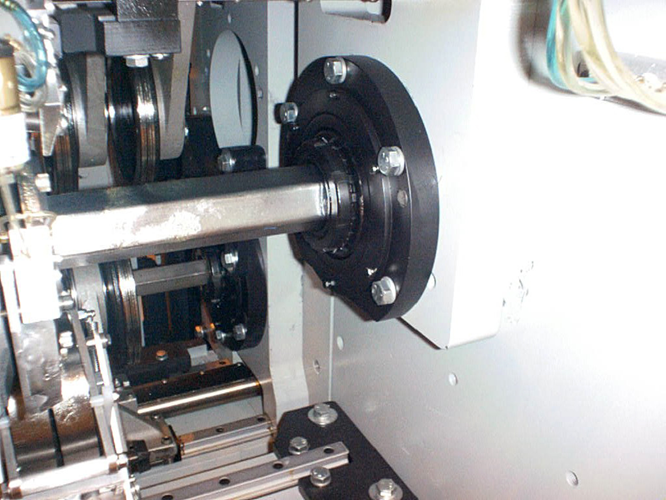

Drive Shaft After

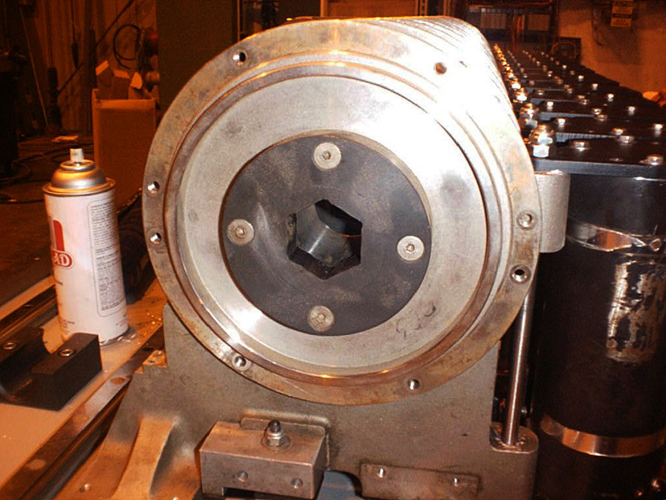

Drive Shaft Before

Upgrade Applications

Applies to all Marquip Model I, Model II, and Model III Razorset Slitter/Scorers.

Upgrade Description

Upgrade of existing slitting hex drive shaft to larger diameter for more robust operation. This upgrade includes:

  • Larger Hex drive shaft
  • New head castings
  • Tooling hubs
  • Tooling hub bearings
  • Linear bearings
  • Larger end bearings and seals

NOTE: Hex Shaft must be supported while performing blade maintenance.

Upgrade Benefits

  • Prevents catastrophic failure of hex shaft drive system caused by running high speeds with unsupported hex shaft.
  • Increased stability of slit tooling drive system by increasing the outside diameter of the hex drive shaft.
  • Allows faster running of one-out and mill run orders.
  • Replaces upper slit hex drive shaft, head castings, hubs, tool bearings and linear bearings.
