P 42-49 Fully Automatic Binding Machine

Product Description

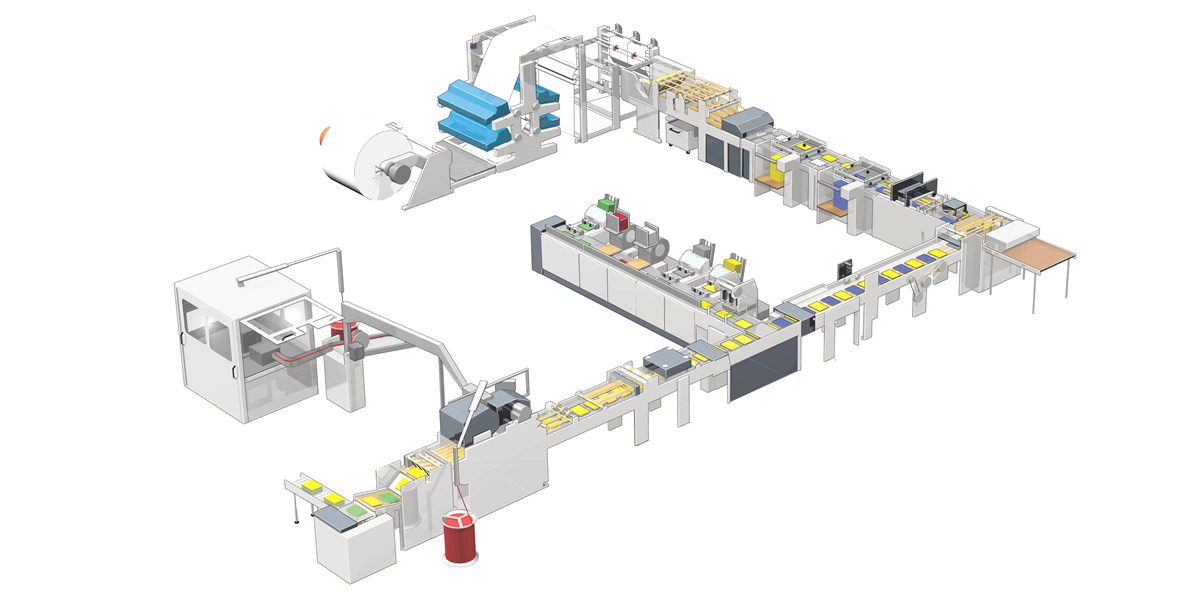

The fully automatic P 42-49 Binding Machine  is a highly sophisticated solution for the fabrication of steel spiral and double-wire stationery products. It can be used for medium and large runs, from paper reel to the finished product. Basic Machine consists of one reel stand, 2/2 flexo ruling, slitting and trimming, 90° turning, cross cutting, counting, flexible cover feeding, punching, collating, 90° transfer, spiral and/or double wire binding and delivery  in shingles.





Product Features

Fully Automatic Binding Machine for Steel Spiral and Double-Wire Products

Medium to Large Runs

Optimal for medium to large runs.

Efficiency

High productivity, quality and flexibility.

Upgrades

Additional upgrades possible.

Time Saving

Short change over times.
  • Technical Data
  • Product Details
  • Options
ImperialMetric
Web speedmax.1640 fpm500 mpm
Paper reel width 4-upmax.
min.
37 in.
17 in.
930 mm
430 mm
Paper reel diametermax.60 in.1525 mm
Paper weightmax.
min.
54 lbs
34 lbs
80 gsm
50 gsm
Printing circumferencemax.
min.
28 1/2 in.
10 3/4 in.
720 mm
270 mm
Adjustment of printing length 1/4 in (1/8 in.)5 (2,5 mm)
Cutting frequencymax.4x1700 = 6800/min
Number of partial layersmin.2
Punching cycles papermax.2x120 = 240/min
Punching cycles feeder sectionmax.120/min
Binding cycles 1-upmax.60/min
Binding cycles 2-upmax.2x60 = 120/min
Bound edge 1-up
Machine without separation cut unit
max.
min.
13 in.
5 3/4 in.
330 mm
148 mm
Bound edge 1-up
Machine with separation cut unit
max.
min.
13 in.
6 5/16 in.
330 mm
160 mm
Bound edge 2-up
Machine with separation cut unit
max.
min.
6 5/16 in.
3 in.
160 mm
75 mm
Unbound edgemax.
min.
9 in.
4 1/8 in.
230 mm
105 mm
Product thickness steel spiralmax.
min.
1 3/16 in.
5/64 in.
30 mm
2 mm
Diameter steel spiralmax.
min.
1 3/4 in.
5/16 in.
44 mm
8 mm
Product thickness double wiremax.
min.
3/4 in.
5/64 in.
20 mm
2 mm
Diameter double wiremax.
min.
1 in.
1/4 in.
25,4 mm
6,35 mm

P 42-49 Fully Automatic Binding Machine

Please contact us for more information.

  • Nonstop reel change including splice detection and discharge
  • Automatic web guiding
  • Quick change for flexo sleeves
  • 4/4 flexo ruling
  • Micro perforation
  • Loose leave delivery
  • Back cover turning
  • Alternate delivery and collecting
  • Extension of a packaging machine
  • Automatic feeder section for flexible and nonflexible covers, inlays, pockets and dividers including punching
  • Corner rounding
  • Half sheet feeder
  • Separation cut for small sizes
  • Double-wire from spool or inline double-wire forming Machine P 44-96 or ProLoop
