Knife Exit Nip Roll Variable Load/Off Load

Knife Exit Roll Nip
Knife Exit Roll Nip

Upgrade Application

Applicable to any Model II or Model III knife.

Upgrade Description

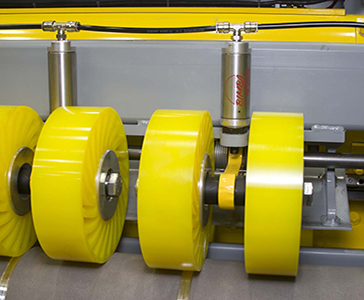

Through replacement of the complete exit roll nip assembly this upgrade provides improved board control and shingle quality by allowing a broad range of adjustability to the exit nip downforce. Includes a new exit holddown assembly with a combination of shocks and air cylinders, torsion springs, bearings, zero-crush wheels, and exit interface pan.

Upgrade Benefits

  • Improves board control for enhanced stack quality
  • Reduces frequency and severity of exit roll and shingling area jams, decreasing downtime and improving productivity of corrugator line
  • Improves overall run ability of all board combinations through better board control
  • Exit infeed pan helps direct leading edge of sheet into the exit roll nip at the correct nip point height

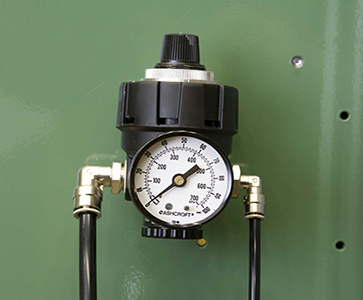

  • Allows Exit Nip force to be adjusted for better control of sheets. This is particularly useful for high-speed, heavy board or micro-flute applications
  • Extends life of zero crush wheels and shock absorbers
