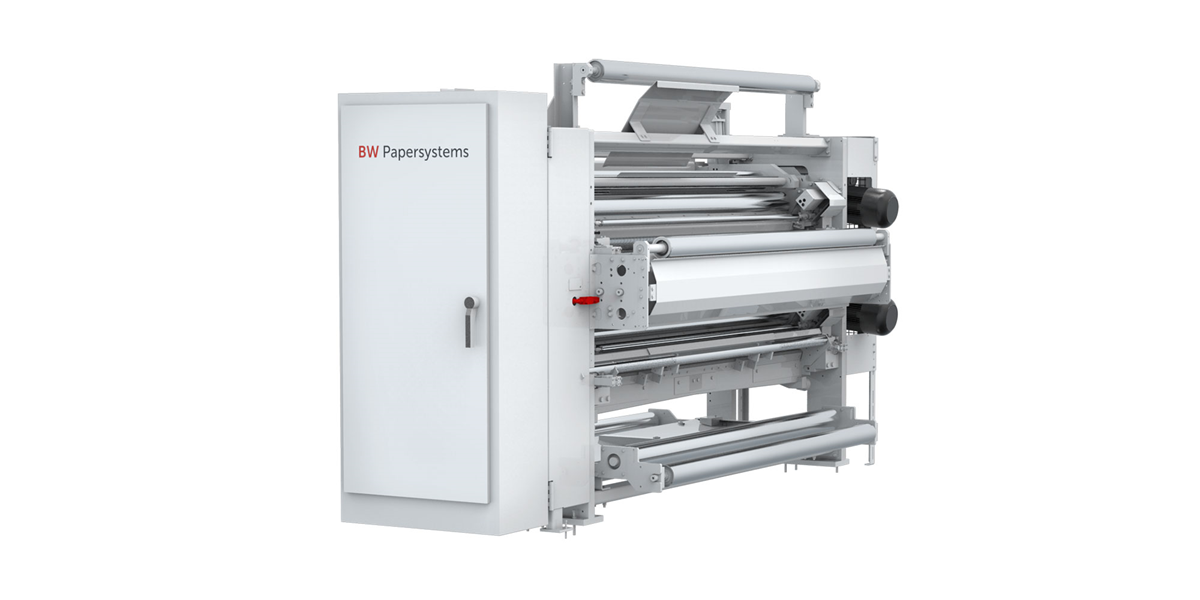

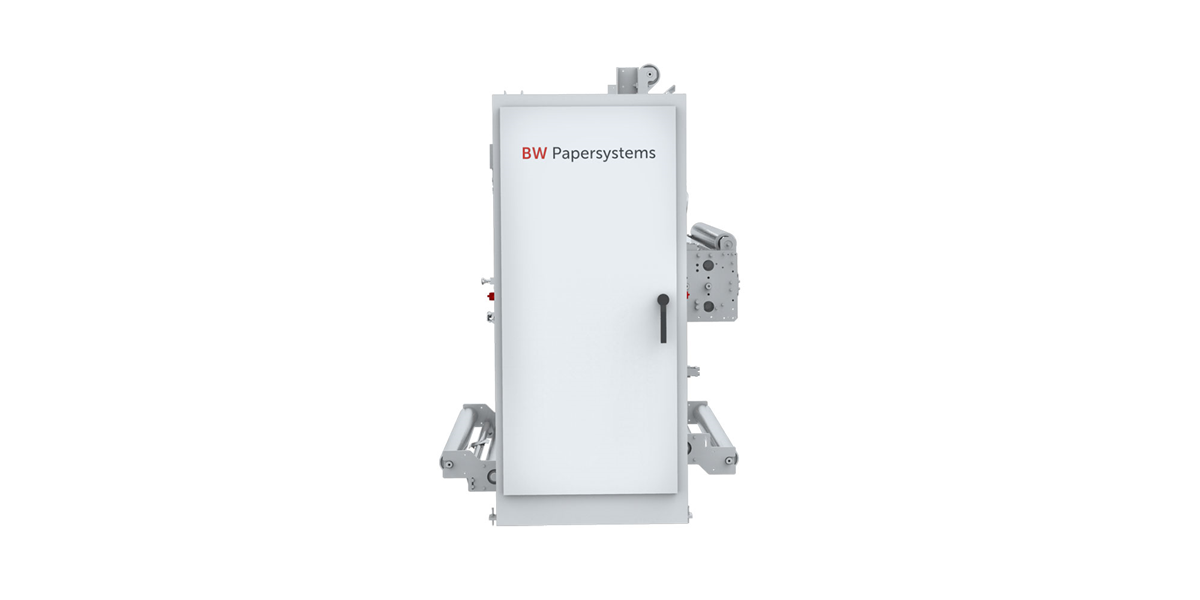

Value Glue Machine

Product Description
  • Automatic glue gap control able to be set from local HMI or from the wet end control system
  • Precise rider roll gap adjustment ensures proper adhesive transfer even with micro-flute
  • Glue transfer mechanism rolls out for easy clean-up, inspection and maintenance
  • Automatic glue dams that can preset to the running web width or interface with wet end controller and/or bridge guide
Download a brochure
Product Features

Automatic Glue Gap Control

Automatic Glue Gap Control maintains consistent glue application throughout the speed ranges of the corrugator by automatically adjusting glue gap as a function of speed.

Easy Clean up and Maintenance

The glue and metering roll assembly is mounted on a motorized trolley assembly that rolls out for easy clean-up, inspection and maintenance

Automatic Glue Dams

This optional electric glue dam system sets the dam positions based on the running paper width. Can be interfaced to the wet end process controller and/or the bridge guide system

Preheaters

Equipped with preheaters for the singleface web and the outside liner for more consistent heating across the board
  • Technical Data
  • Product Details
  • Options
 ImperialMetric
Width70 in. - 87 in. - 98 in. - 110 in. - 112 in.1.8 m - 2.2 m - 2.5 m - 2.8m - 2.85m
Maximum Speed1300 fpm400 mpm

  • Automatic glue gap control able to be set from local HMI or from the Wet End Control system
  • Precise rider roll gap adjustment ensures proper adhesive transfer even with micro-flute
  • Glue Transfer Mechanism rolls out for easy clean-up, inspection and maintenance
  • Automatic glue dams that can preset to the running web width or interface with Wet End Controller and/or Bridge Guide

  • Contact Shoes or Rider Roll (servo controlled) for the singleface web to glue roll contact
  • Automatic Glue Dam System following the web-width and position.
  • Remote (WEC) or local operation
  • InfusionTM capability
