Continuum Dual Rotary Sheeter

Product Description

The Continuum Sheeter has been specifically designed to meet the production needs of the paper mill industry. This multi-purpose, dual-rotary sheeter accurately cuts fine paper and paperboard. The Continuum is configurable with multiple paper-delivery and continuous run pallet discharge systems.

Features
  • Soft Metric Design
  • Full Speed Continuous Discharge Option
  • Knife speed curve - 400 mpm (1300 fpm)
  • Sheet lengths - 400 mm - 2100 mm
  • Configurable for fine paper and board
  • Auto or manual setup options: slitter, overlap section, stacking bay
  • Auto pallet positioning
  • Heavy duty mesh belt stack discharge
  • Two stage belted outfeed section with heavy duty divert system
  • Lean by Design
  • Functional Aesthetics
  • Effective power use
  • Maintenance friendly
  • Management information access
  • Intuitive operation
Product Features

The Continuum is a highly productive Dual-Rotary Sheeter for Fine Paper and Paperboard. With its multiple paper-delivery and continuous run pallet discharge systems, it’s a perfect fit for the paper mill industry and large folding carton plants.

Highly Productive

The Continuum Sheeter has been specifically designed to meet the production needs of the paper mill industry and large folding carton plants.

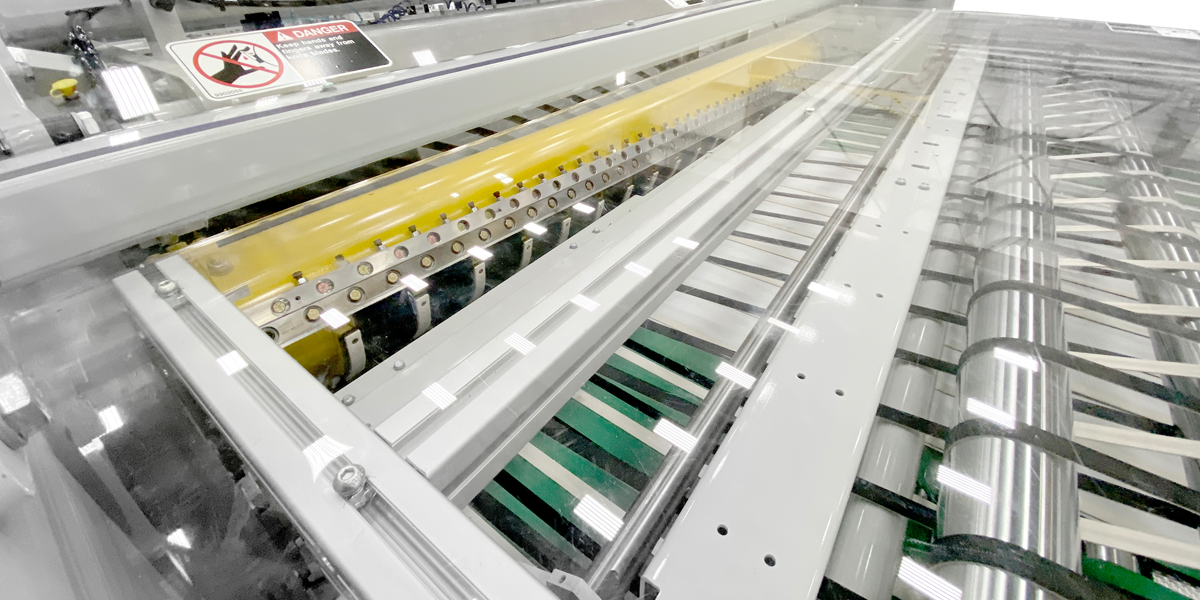

Superior Knife Technology

This sheeter includes legendary Marquip knife for highest cut quality at a 400 mpm / 1300 fpm speed curve.

Simple or Duplex Web-In Slitters

Automatic positioning for faster order changes and unsurpassed slit quality.

Full Speed Continuous Discharge

The Continuum includes a full speed continuous discharge for high volume production of fine paper and board.
  • Technical Data
  • Product Details
  • Options
Metric Imperial
Sheet Width 1850 mm73 in
Reel Widthmin
max
1700 mm
1900 mm
67 in
75 in
Reel Diametermax
optional
1850 mm
2134 mm
73 in
84 in
Reel Weightmax.4545 kg10000 lb.
Speedmax.400 mpm1300 fpm
Length AccuracySingle Web+ / - 0,38 mm (0.015 in)
Length AccuracyMulti Web+ / - 0,5 mm (0.020 in)
Knifemax.1000 gsm
Slittermax.600 gsm
Sheet Lengthmin.
max.
400 mm
2080 mm
15.75 in
82 in

  • Low profile - 400 mpm (1300 fpm) knife speed curve - heavy-duty pull roll
  • Heavy-duty lift table - 10000 lb. (4500 kg) rating
  • Vacuum-modulated overlap section with air blow down
  • Reject gate - heavy duty roller style
  • Available in width of 1850 mm (73 in)
  • Manual slitting section
  • Heavy-duty shaftless unwind stands
  • Decurlers
PC Based Controls
An integrated PC-based controls system, fully compliant with the IEC 61131-3 programming standard, streamlines the machine control system while offering seamless network connectivity to optional remote operator terminals and plant computers. Graphical touch screens with advanced diagnostics simplify order entry and provide for complete machine operation from either main or optional remote operator consoles.

  • Simplex or duplex web-in automatic positioning slitters for faster order changes and unsurpassed slit quality
  • Additional outs
  • Cut-to-register
  • Multiple tension control options
  • Automatic web guides
  • Decurlers
  • Single or dual catwalk configurations
  • Static control options from paper delivery to the stacker
  • Digital sheeting options
  • Tabbers
  • Split web options

Continuum Sheeter - a multi-purpose, dual rotary knife sheeter for paper and board mills


The Continuum Sheeter has been specifically designed to meet the production needs of the paper mill industry. This multi-purpose, dual-rotary sheeter accurately cuts fine paper and paperboard. The Continuum is configurable with multiple paper-delivery and continuous run pallet discharge systems.
