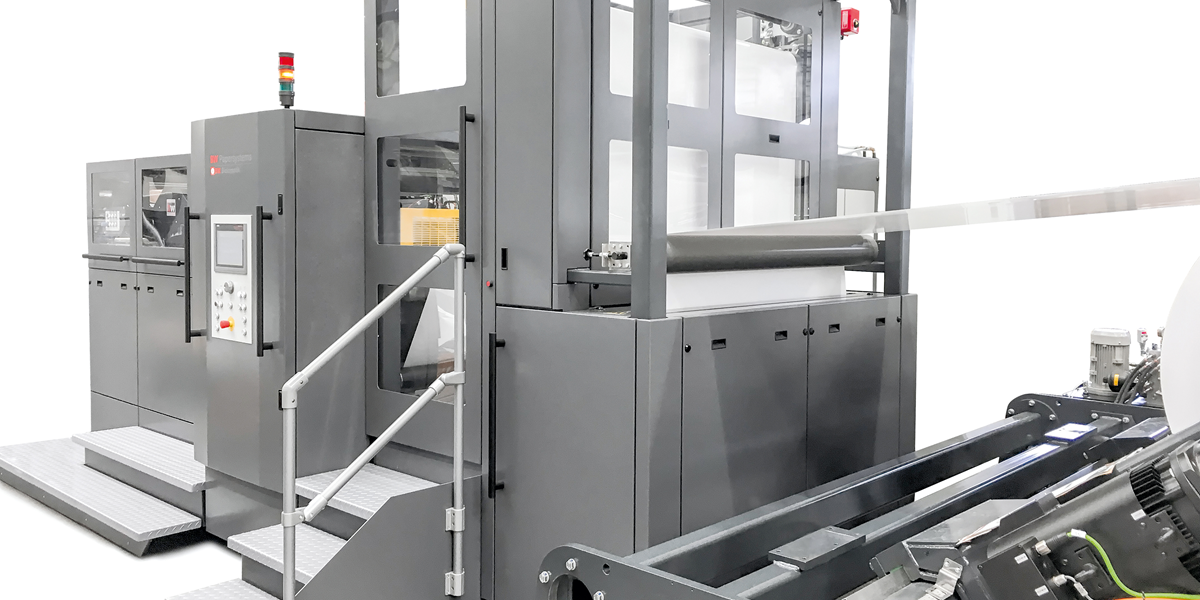

Eagle 165 Inline Pre-Press Sheeter

Product Description
The Eagle 165 Inline Pre-Press Sheeter is the world’s first XXL format Inline Roll Sheeter suitable for installation on all new and existing large format presses. Drawing on over 20 years of experience, we have developed this unique Sheeter to allow the customer to maximize the efficiency of any large format press in daily production by combining the benefits of web-fed and sheet-fed offset.

  • One stop for reel change instead of 3-4 pallet changes
  • Significantly reduced make-ready and set-up times
  • High cutting tolerance allows direct finishing in postpress without vibrating or additional cutting
  • Increased printing speed by +50% due to optimized sheeting and feeding
  • Lower cost for paper from reel
  • Fewer paper jams and stops due to paper and sheet quality
  • Reduction of waste due to reel feeding
  • Special printing materials and substrates can be processed
  • Short runs and high amount of job changeovers in less time
Download a brochure
The development of the BW Papersystems LFS165 Sheeter [Eagle 165 Inline Pre-Press Sheeter] is a really great achievement. - Klaus Sauer, Managing Director, SAXOPRINT, Dresden, Germany
Product Features

The world’s first XXL format Inline Roll Sheeter

Maximized Efficiency

The Eagle 165 maximizes the efficiency of any large format press with just one stop for reel change instead of 3-4 pallet changes and significantly reduced make-ready and set-up times.

High Cutting Tolerance

High cutting tolerance allows direct finishing in postpress without vibrating or additional cutting.

Increased Printing Speed

Increased printing speed by +50% due to optimized sheeting and feeding.

Lower Costs and Less Waste

Running web offset means lower cost for paper from reel and a reduction of waste due to reel feeding.
  • Technical Data
  • Product Details
  • Options
Max. roll weight3200 kg
Max. roll diameter1530 mm
Side movement+/- 30 mm
Tension range1,5 N/cm - 5 N/cm
Roll width680 mm - 1650 mm
Sheet length630 mm - 1210 mm
Speed15000 sheet/hour - 300 m/min
Material range60 gsm - 250 gsm paper/cardboard
40 gsm - 300 gsm and other substrates upon request
Cut tolerance+/- 0,3 mm
Squareness tolerance+/- 0,3 mm/1000 mm
Noise85 dBA

Cutting sheets from reel

The Eagle 165 Inline Pre-Press Sheeter combines the lower cost of web offset with the flexibility of sheet-fed offset. The printing stock is unwound from the reel, cut to the required size in the sheeter, and then shingled and fed individually to the press.

Wide range of material

The Eagle 165 offers the perfect combination with any sheet fed press in a print size range from 6 to 7b (up to a size of 1240 mm to 1650 mm) and opens a wider range of printing materials and substrates such as film, foils, coated and metallized materials or thinnest paper qualities.

Higher flexibility, greater performance and reduced costs

This Inline Pre-Press Sheeter provides a cost saving based on lower costs of reels compared to sheets, reduced handling, lower waste and a higher running speed that can add up to 15% or more. These benefits are increased when lightweight or sensitive substrates are run.

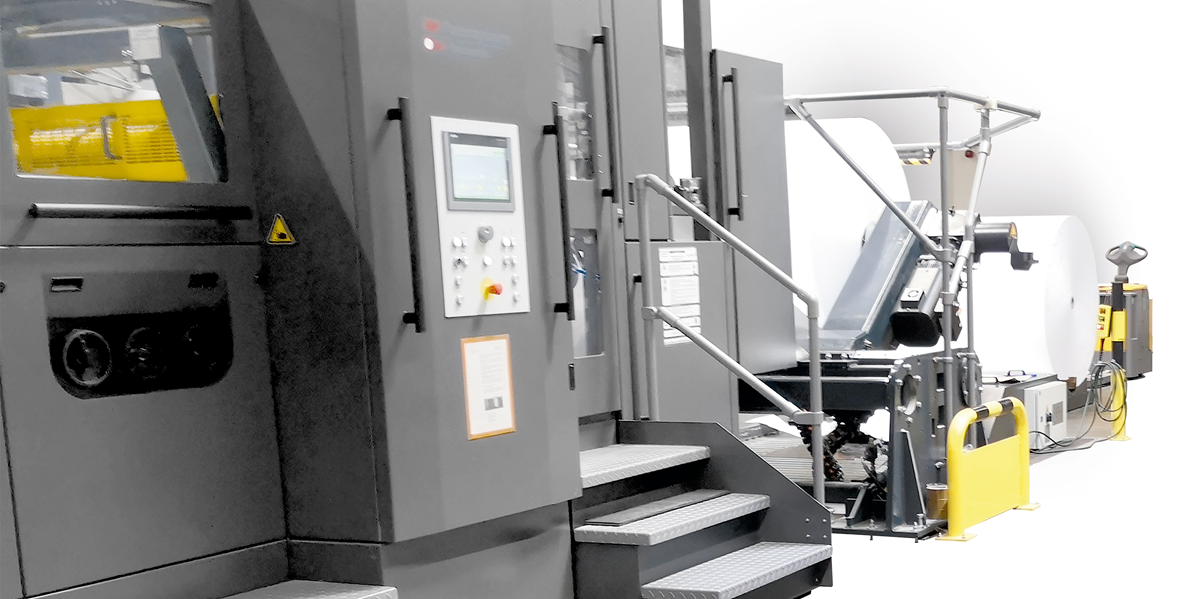

Make-ready times are short with setup menus stored via the HMI. When moving from reel-mode to sheet-mode the delivery section indexes to one side proving access to load pallets. A highly respected printer reports 50% more production from their press equipped with an Eagle Inline Sheeter compared to an identical sister press with a traditional sheet feeder. The Eagle Inline Pre-Press Sheeter can be installed with any existing large format press in the field or supplied with a new press purchase.

Four components

  • Unwinder with re-generative motor braking system
  • Dancer roller for fast stop and start
  • Cross cutter
  • Feed conveyor with underlapping

    Please contact us for more information.

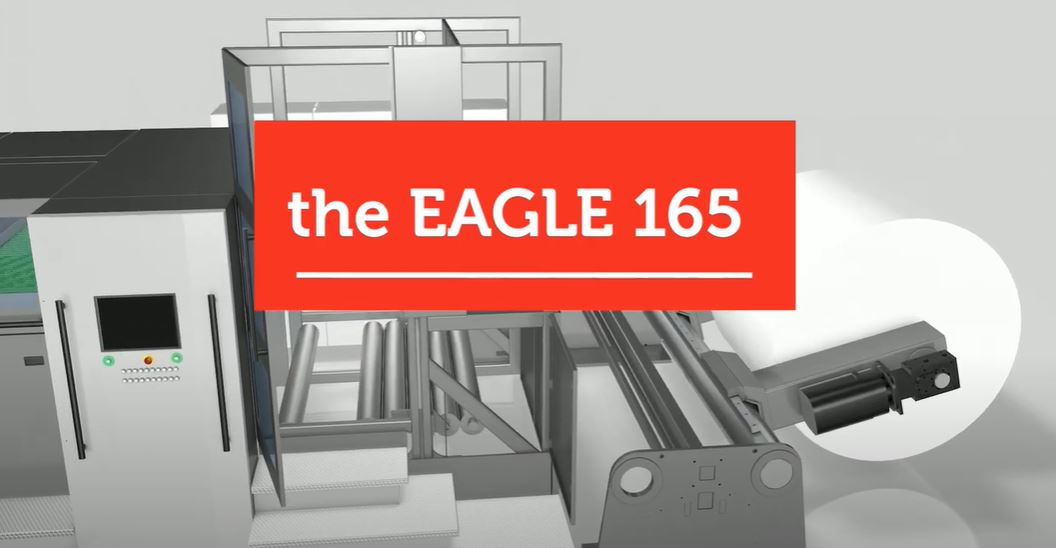

    Video Image_Eagle 165

    Eagle 165 Inline Pre-Press Sheeter

    BW Bielomatik presents EAGLE 165 – the world’s first XXL format Inline Roll Sheeter for 145-165 cm sheet offset presses run.

    Maximized ROI and 50% increase in output are the key benefits provided by Eagle 165 Inline Pre-Press Sheeter.

    Watch Video
    Related Content
    Free Webinar On Demand - How to print offset efficiently

    Webinar On Demand: How to Print Offset More Efficiently?

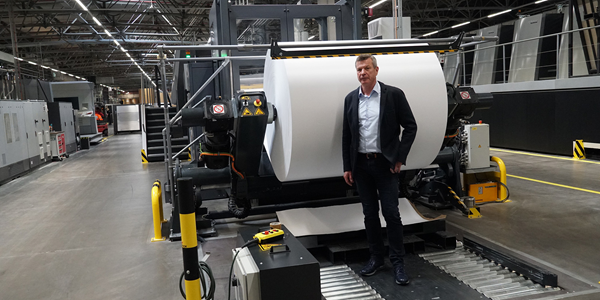

    klaus_sauer_cutstar

    Partnership-based relationship pays off – double the efficiency for Online print shop SAXOPRINT

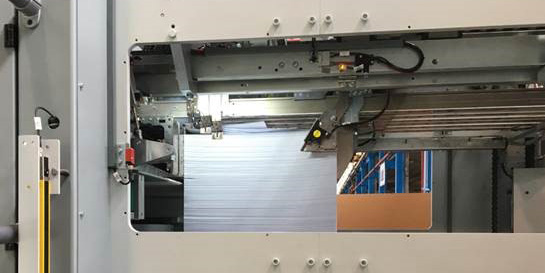

    BW Papersystems introduce inline sheeter stacker for digital presses

    BW Papersystems Introducing Inline Sheeter/Stacker for Digital Presses

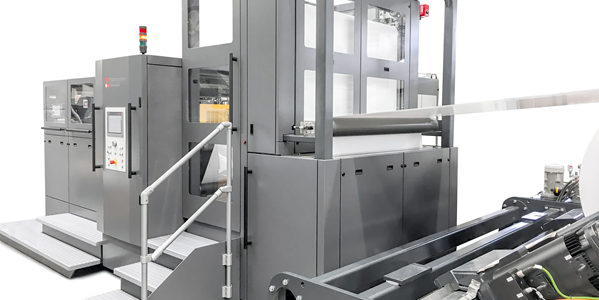

    BW Bielomatik Launch Inline Sheeter for Large Format Offset Presses
