TIP CUT-0403 Manual to Auto Sheet Length & Squaring
Machine Model for Improvement
SHM 1400 SRDescription of Improvement
integrate into a sheeter with manual sheet length and squaring.

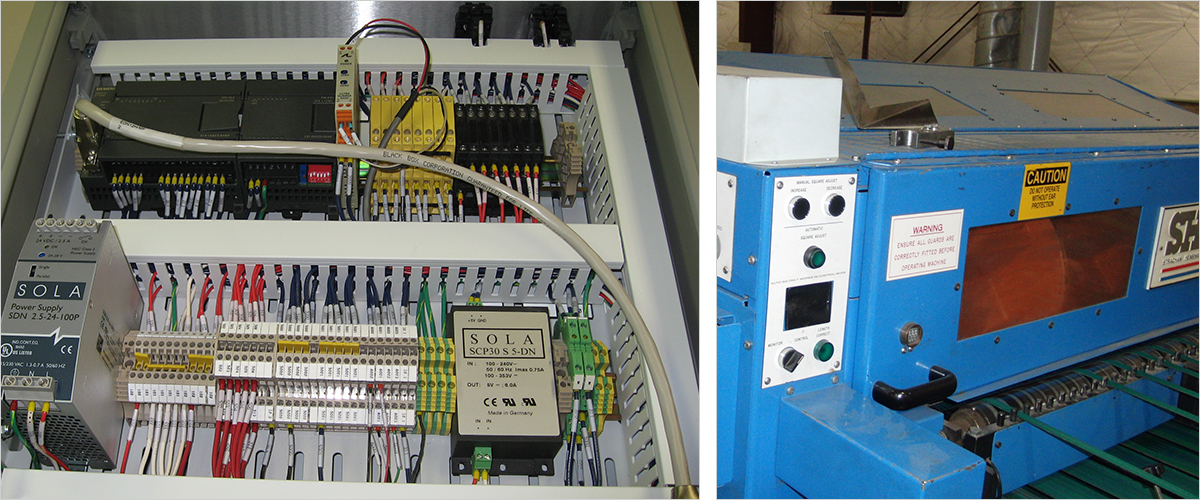

This upgrade includes a new control box that houses the Siemens S7-200 plc, 24 VDC power supply, 5 VDC power supply, analog and digital I/O modules and other electrical components for precision control of the sheet length and squaring. This control system also comes with a Squaring Position Transducer, Draw Drum Encoder, Squaring and Length Motors. This system also provides a 2 line, 20 characters Digital Operator Interface. Through this device the operator enters the Sheet Length (selectable, millimeters or inches), performs Diagnostics, and Calibrates the sheet length and squaring.
Benefits
- Reduces size change time
- Accurately adjust sheet length at all speeds
- Eliminates manual adjustment errors in sheet length and squaring
Technical Service
The BW Papersystems Service Department is a highly dedicated team of people committed to giving the best customer support in the industry. Trained technicians are available for emergency service, machine updates and maintenance.
Technicians are available throughout the world for fast response and quality service. Learn more about how our service technicians can help you.
