Bottom End Rebuild

Bottom End Rebuild

Upgrade Application

Applicable to all Ward LEF machines

Upgrade Description

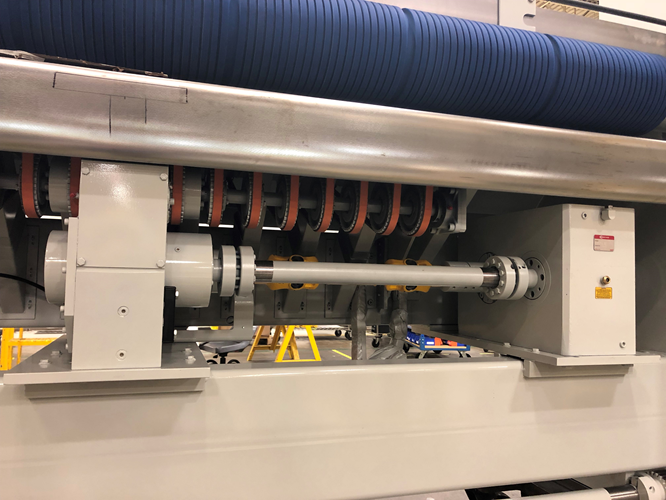

The Bottom End Rebuild Package comes with new Extended Feed Center Cam Box, and Extended Feed Camco Index Box. Additionally the cross connection shafts and new Keyless Belt Pulleys are also included. The new center box is redesigned with stronger gearing and shaft bearing housing for better support of the index and drive shafts. The upgrade includes HD center box, HD camco box, cross shafts and couplings, keyless timing belt pulleys, camco drive pulley and drive belt on 50 and 66 inch machines or the flexible coupling on 37.5 inch machines.

Upgrade Benefits

  • Redesigned center box with stronger gearing and shaft bearing housing for better support
