Allen-Bradley UCP

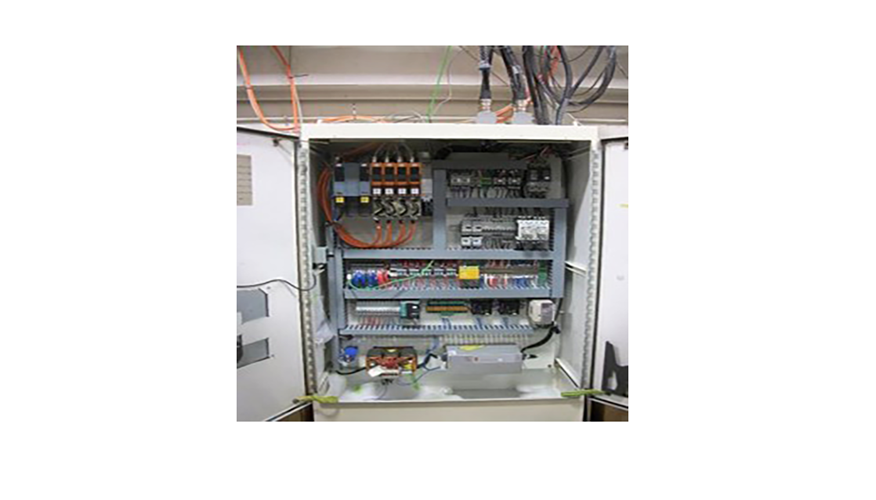

UCP After

Upgrade Application

Applicable to Ward machinery

Upgrade Description

Upgrade your machine’s outdated control system with a state-of-the-art Unified Controls Platform. This upgrade features an Allen-Bradley controls package for all applications with three levels of solutions. Each solution brings the technical innovation and familiarity of Allen-Bradley, assuring your machine’s control system will remain supported for years to come.

Level I - FFGs with up to 14 axis control points such as Slotter, Feed Gates

Level II – Gear-Driven RDCs & FFGs with up to 32 axis control points such as Slotter, Feed Gates, Registers, nips

Level III – Servo RDCs & FFGs with up to 32 axis control points such as Slotter, Feed Gates, Registers, Counter Ejector Servo Motors and drives

Benefits

  • New PC control system
  • Extend the life of aging machine fleet
  • Eliminate obsolescence
  • Minimize unplanned downtime
  • Online documentation, troubleshooting, and remote diagnostics
  • Settings monitored and adjusted from operator console
  • Avoid machine downtime and expensively long lead times dealing with obsolete G&L component

Components

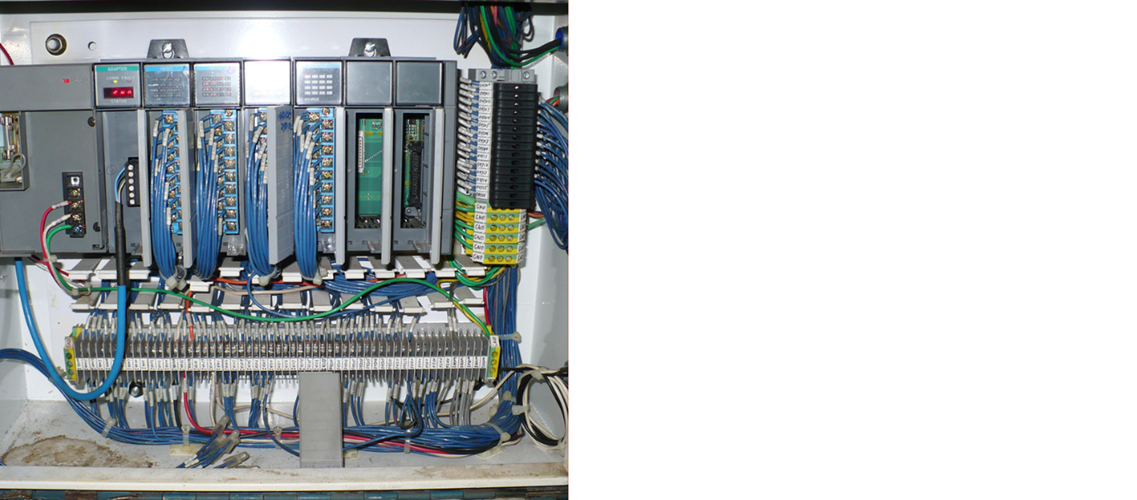

  • Allen-Bradley CompactLogix controls with distributed I/O for main press, folder, and counter ejector
  • Allen-Bradley Kinetix drives and motors

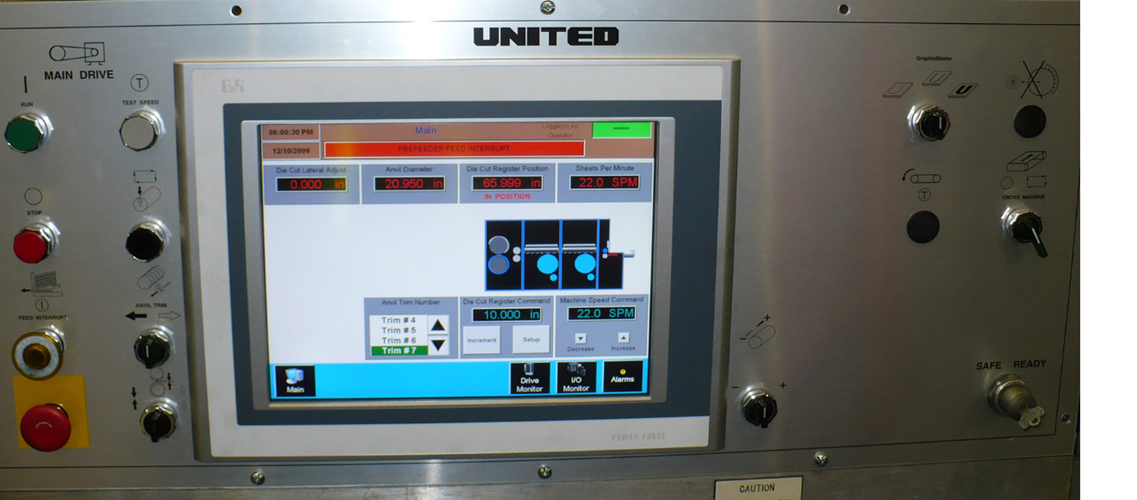

  • Allen-Bradley PanelView touch screen, providing single point order entry
  • New switch plates with Allen-Bradley components
  • Service PC allowing remote troubleshooting access and support
