TIP C 4040 Replacement of obsolete Microbox IPCs with Siemens S7 TIA / Sinamics
Machine Model for Improvement
All Bielomatik cut-size sheeters equipped with Siemens Microbox IPCs
Description of Improvement
This upgrade is part of our Technical Improvement Program (TIP) and replaces the existing obsolete Siemens
Microbox IPCs controlling the drive automation functions.

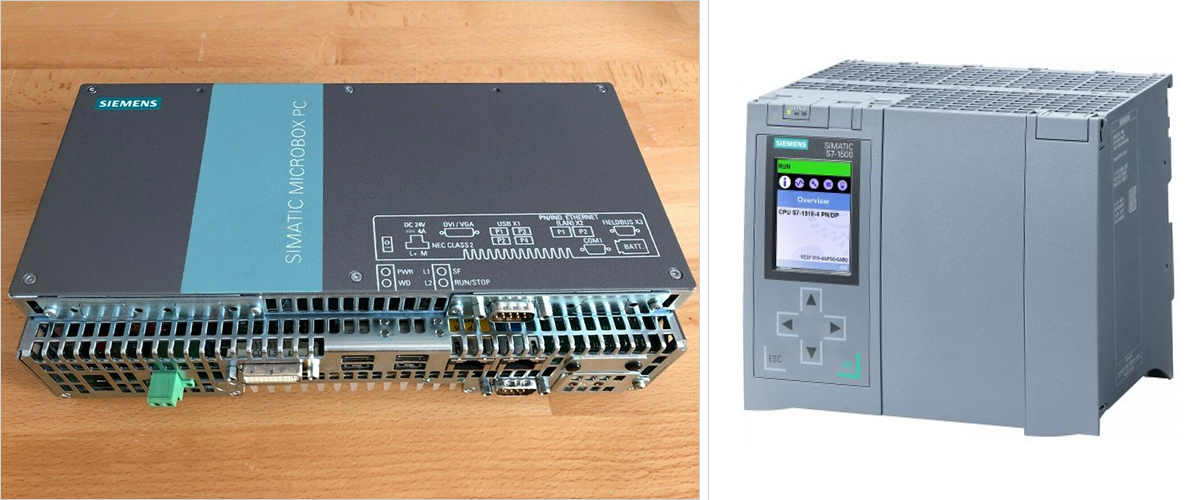

The existing Siemens Microbox computers controlling the drive and automation functions are obsolete and will be replaced by the new Siemens PLC S7 TIA Portal controls and Sinamics drive system.
All previous functions will be transferred into the new Siemens S7 TIA Portal PLC, e.g. counting, splice detection, rejection, cut-off length measurement, web tension and overlapping gap position control. The specification of the cross cutter drive and the speed curve will be equal or better as before the upgrade.
Benefits
- Latest technology and spare parts availability
- Long-term and sustainable machine availability
- Well-structured diagnostics capabilities
