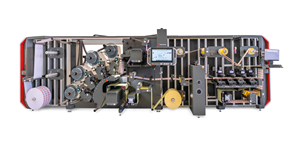

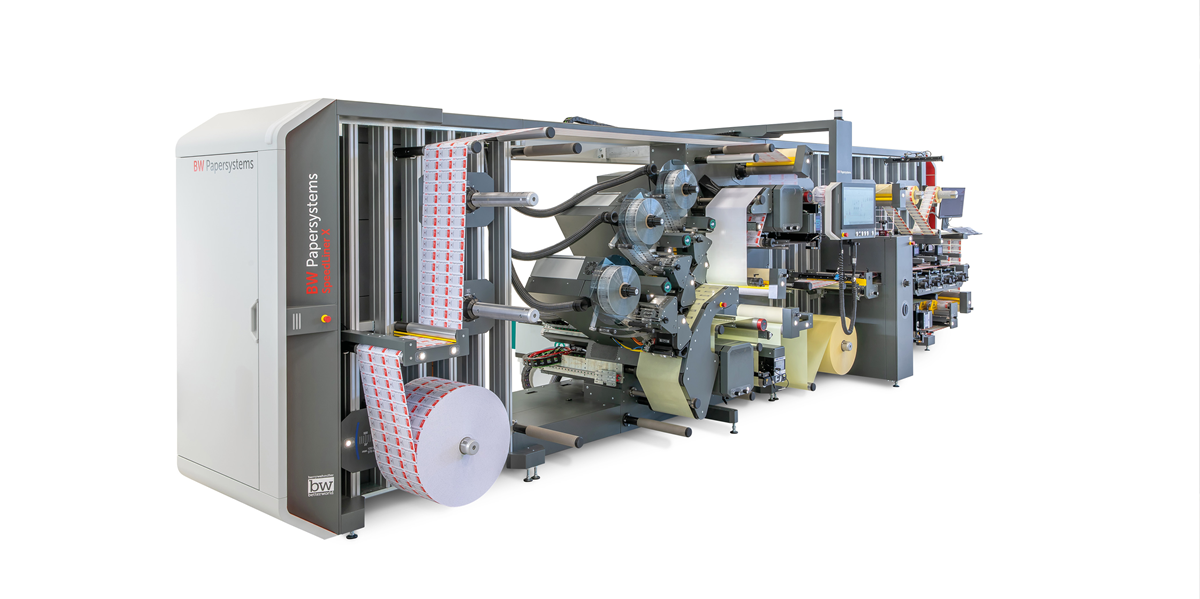

SpeedLiner X RFID Converting Machine

Product Description

Boost productivity with the SpeedLiner X from BW Papersystems. Delivering up to 25% higher annual output, it cuts production costs per tag by about 30% and reduces total cost of ownership by up to 5%.
Its compact footprint saves 30–40% floor space, while advanced engineering supports your sustainability goals with over 40% energy savings and 60% compressed air savings compared to typical systems.

Efficient. Easy to operate. Scalable. The SpeedLiner X is your competitive edge in RFID tag production.
Product Features

SpeedLiner X : Efficient, Easy-to-Operate, and Scalable RFID Converting Machine

Scalable Design

Expandable and retrofittable to grow with your business, including non-stop rewinding.

Intuitive Operation

Next-generation HMI with recipes and automated modes for quick setup and control.

Maximum Output

Up to four-track production for the highest throughput.

Lower production cost

Optimized machine for lowest production cost per tag

  • Technical Data
  • Product Details
  • Options

 ImperialMetric
Machine width (max.)14"350 mm
Number of tracks1-4
Inlay attachers1-4
Speed* (max.)295 ft/min90 m/min
UPH*90 000 for each attacher
Inlay processing

Dry

Dry and wet (as an option)

Glue

Self-adhesive

Hotmelt

PUR

Products

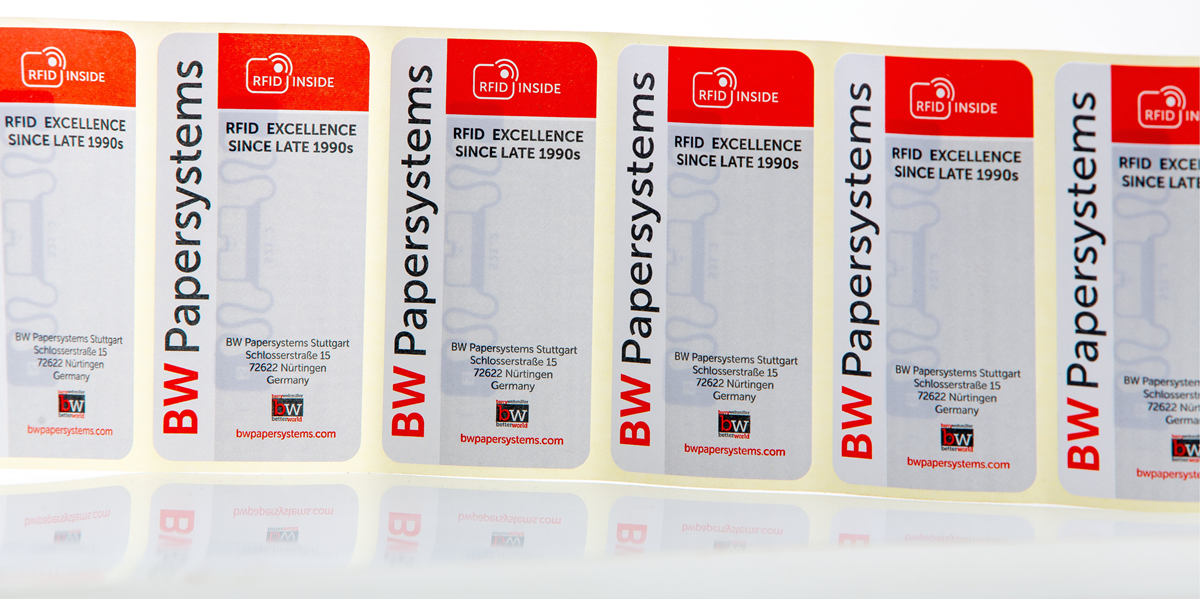

Labels on reel

Tickets on reel

Single tickets

Number of layers2-4

*max values depending on product size

SpeedLiner X RFID Converting Machine

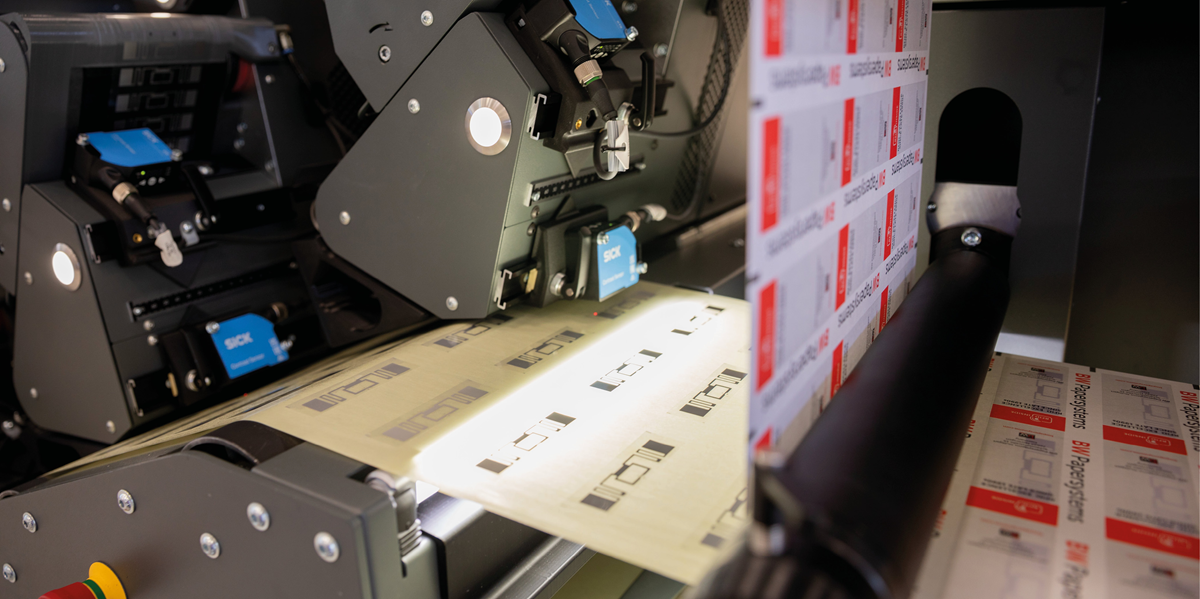

  • Up to 4 attaching modules for dry inlay and off-pitch production
    • Independent RFID attaching modules
    • Up to 4 track production for higher output
    • Non-stop inlay attaching for unmatched efficiency
    • Bad inlay removal and automated doctoring for best quality
  • Ease of operation for higher productivity
    • Smart web guiding and clear process visibility
    • Great machine accessibility for short set-up times and efficient maintenance
    • Next-generation HMI with recipes and auto-modes for intuitive operation
  • Automatic register synchronization of top and bottom web
  • Scalable and retrofittable machine to grow with your business

SpeedLiner X is highly scalable to meet your customer’s demands. Features can be selected or de-selected for machine configuration.

  • 1 to 4 track
  • Dry and wet inlay attaching units
  • Non-stop inlay attaching
  • Non-stop rewinding with turret rewinder
  • Doctoring at inlay attaching
  • Ticket delivery
  • Self-Adhesive / Hot-Melt / PUR
  • Delam-Relam Mode
  • Second die-cut
  • Visual inspection systems
  • RFID testing
  • and many more – contact us for detailed information
