P 25-85 Banknote Stack and Ream Machine

Product Description

The P 25-85 Stack / Ream Machine is a highly advanced Folio Sheeter for the converting of banknote and security paper materials, like cotton paper with security thread and holograms, from the web into reams. From automatic unwind stands including splicing, precise slitting and cross cutting quality up the exact counting of sheets into reams. This Sheeter ensures a reliable and secure production. Options include an inline packaging line from ream wrapping up to a palletizer.

  • Sheeting with the highest accuracy
  • 100% accurate counting guaranteed
  • Superior press-ready stacks/reams
  • The best access for machine operation (no catwalk)
  • Touchscreen interface for easy operation
  • Sturdy, reliable machine for low maintenance

    Ideal for:

    • Security paper mills
    • Security converters
    Download a brochure
    BW Papersystems has always more than met our expectations in terms of machine and product quality and high productivity. First-class equipment and supplier for first-class customers with high-performance standards. That's why we would buy a BW Papersystems banknote sheeter again. - Anonymous due to Confidentiality, Security Documents Industry
    Product Features

    The P 25-85 is a high-precision, reliable, state-of-the-art, cut-to-register Folio Sheeter for the converting of banknote and security paper materials from reel into sheet.

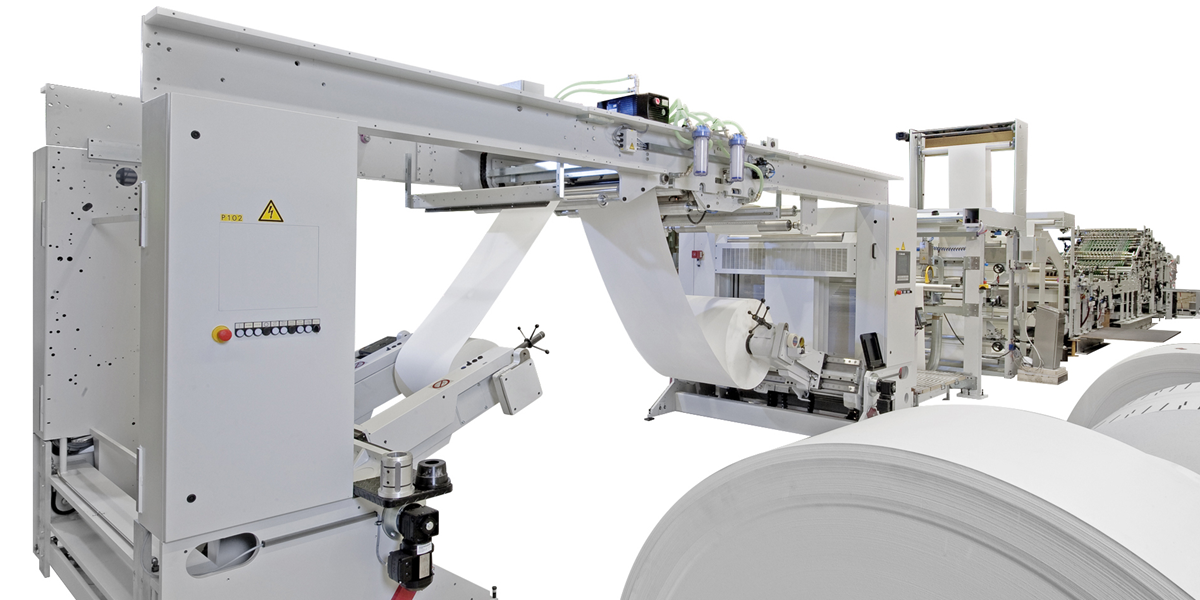

    Single or Non-Stop Double Unwind

    • Double unwinding ensures fully automatic NON-STOP roll change and thus less machine downtime and higher production output

    Web Edge Control by CCD Camera

    • Web regulating system for high accuracy of web run
    • Recognition of tracking line or web edge
    • Input of parameters at operator panel

    Edge Trim

    • Compact, backlash-free, and extremely stiff system
    • Best cutting quality for all kinds of banknote and security papers within the grammage range
    • Simple knife change and re-producible knife setting

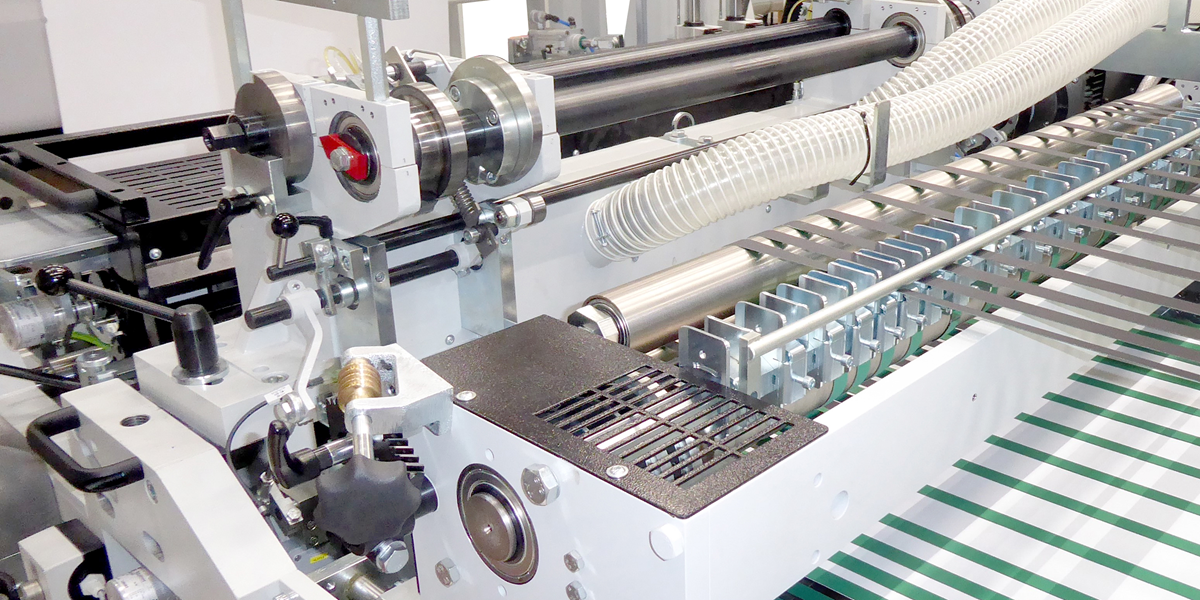

    Cross Cutting and Notching

    • Single rotary and double rotary system
    • Single and tandem cutting system
    • Rotary notching (web)
    • Ream notching option
    • Technical Data
    • Product Details
    • Options
    Stack Machine
    Web width at unwind450 mm - 900 mm
    Reel diameter460 mm - 1500 mm
    (loading from floor)
    Cutting length range430 mm - 850 mm
    Cutting width range430 mm - 850 mm
    Production speedmax. 350 m/min
    resp. 650 cuts/min
    (depending on paper grade and speed chart)
    Piled height
    (accepted sheets/not accepted sheets)    		1200 mm
    MaterialCotton paper with security thread and holograms, pulp paper and mixture from both
    Grammage of material65 gsm - 120 gsm
    Ream Machine
    Web width at unwind450 mm - 900 mm
    Reel diameter460 mm - 1500 mm
    (loading from floor)
    Ream sizemin. 430 mm x 430 mm
    max. 850 mm x 850 mm
    Ream collecting heightmin. 10 mm
    max. 100 mm
    Production speedmax. 350 m/min
    resp. 650 cuts/min
    (depending on paper grade and speed chart)
    Piled height (not accepted sheets)1200 mm
    MaterialCotton paper with security thread and holograms, pulp paper and mixture of both
    Grammage of material65 gsm – 120 gsm

    Stack and Ream Machine

    • Single or non-stop double unwind (medium speed splicer)
    • Web edge control by CCD camera
    • Decurling station/rotary/bar type/combination
    • Trimming unit
    • Web wide dust removal system (front and back side)
    • Inline rotary web notching
    • Full width web inspection system (integration or supply as per customers request)
    • Cross cutting unit single rotary/double rotary /single and tandem cut (Ream Machine)
    • Sample gate
    • Stack delivery (Stack Machine)
    • Ream delivery (Ream Machine)
    • Stack delivery for accepted sheets (Stack Machine)
    • Stack delivery for not accepted sheets (Stack and Ream Machine)

    Options for Ream Machine

    Main features for automatic inline ream wrapping line:
    • Ream notching station
    • Re-work station for not accepted sheets including re-counting station
    • Top and bottom sheet inserter
    • Ream scale
    • Ream turning unit
    • Ream shrink wrapping
    • Ream labeling
    • Ream palletizing system
    • Pallet wrapping system
    Video Image P 25-85 Banknote Stack and Ream Machine

    P 25-85 Banknote Stack and Ream Machine

    BW Papersystem presents P 25-85: the Folio Sheeter for the converting of banknote and security paper materials from reel into sheet.

    Watch Video
    Related Content
    Interview new sheeter exceeds expectations at DREWSEN_2

    New Questec sheeter at DREWSEN exceeds expectations for output, size accuracy and stacking quality

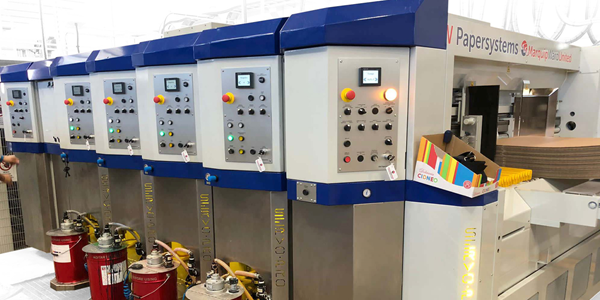

    ServoPro Rotary Die Cutter at Icierre
