P 15-81 Ruling Machine

Product Description

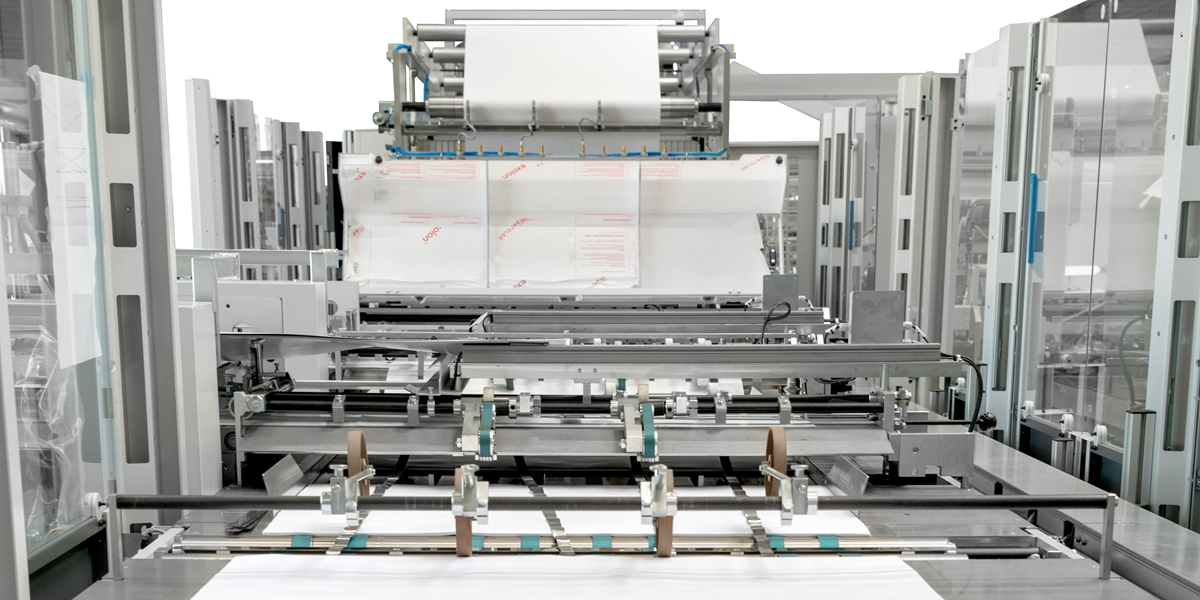

The fully automatic Sheeter/Ruling Machine with a paper reel width of max. 1130 mm  (44 1/2”) is a highly sophisticated solution for the fabrication of ruled large sheets for semi-automatic finishing on other machines e.g. for pads, exercise books, or wire bound products. It can be used for medium and large runs.

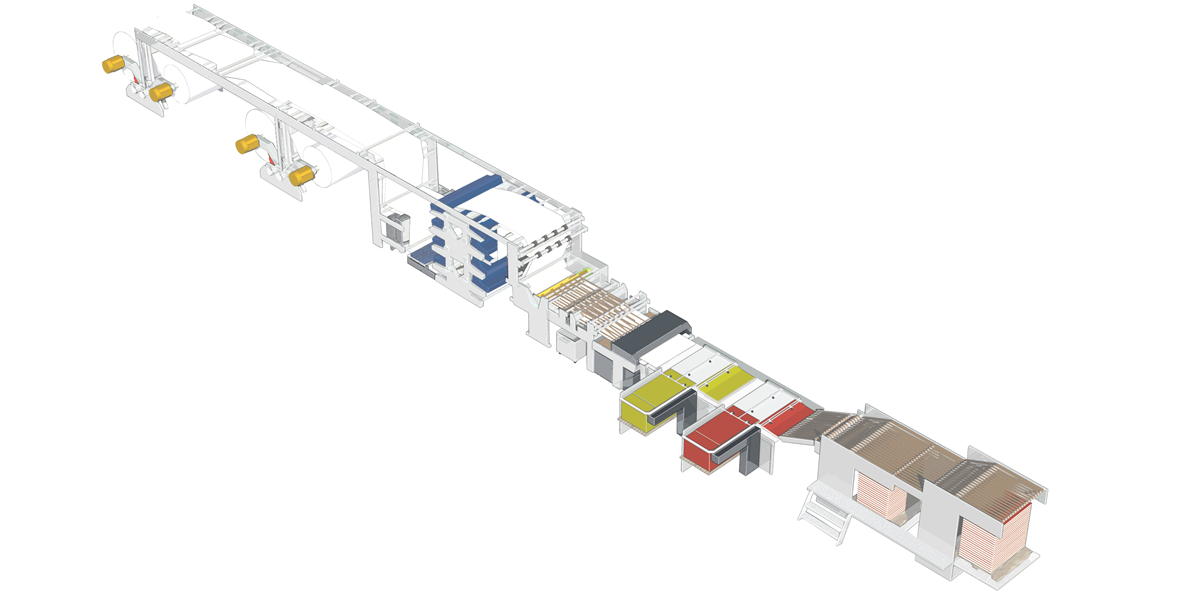

The basic machine consists of the single reel stand, flexo ruling, cross-cutting, overlapping, collecting and counting, sheet feeding, and deep pile delivery.

  • Cover sheet feeders are mounted at the side for easy access
  • Perfect piling on deep pile
Product Features

Fully Automatic Sheeter/Ruling Machine

Medium to Large Runs

Optimal for medium and large runs.

Efficiency

High productivity, quality and flexibility.

Upgrades

Additional upgrades possible.

Operator-Friendly

Cover sheet feeders mounted at the side for easy access.
  • Technical Data
  • Product Details
  • Options
ImperialMetric
Web speedmax.1600 ft /min500 m /min
Paper reel widthmax.44 1/2 in1130 mm
 min.23 5/8 in600 mm
Paper reel diametermax.60 in1525
Paper weightmax.
min.
250 g/m2
45 g/ m2
Printing circumferencemax.28 3/8 in720 mm
Adjustment of printing length 1/4 in (1/8 in)5 mm (2,5 mm)
Cutting frequency 1600/min
Cutting lengthmax.28 3/8 in720 mm
 min.11 13/16 in300 mm
Sheet count per layermax.50
 min.4
Cover weightmax.
min.
800 g/m2
60 g/ m2
Pile height of deep pile deliverymax.51 3/16 in1300 mm
Single deep pile with quick changemax.43 5/16 in1100 mm

Please contact us for more information.

  • Two web operation
  • Nonstop reel change including splice detection and discharge
  • Automatic web guiding
  • Electronic cut-off and sheet count control
  • Double deep pile for nonstop operation
  • Quick change system for single deep pile
  • Quick change for flexo sleeves

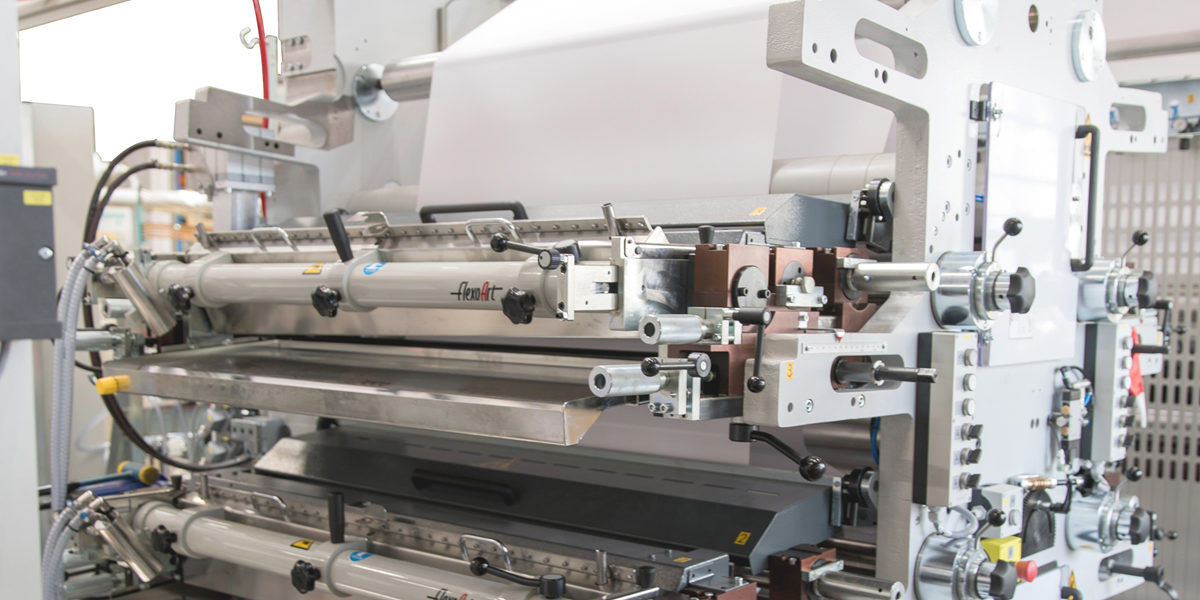

  • 4/4 flexo ruling
  • Micro perforation
