Wrapmatic GRSX Folio Ream Wrapper

Product Description
The GRSX folio ream wrapper is scalable - from a basic wrapping table version to semi-automatic to even fully automatic wrapping. It handles all palletized paper and plastic sheets and other flat materials, ranging from 20 up to 600 gsm. The GRSX is the perfect wrapper to grow with your business.

  • Wrapping table: up to 3-4 reams/min.
  • Semi-/Full automatic version: up to 8 reams/min.
  • Ream sizes ranging from 279 x 420 mm to 1200 x 1400 mm
  • Wrapping table: Manual girth gluing & folding, automatic cutting of wrapping material to selected length and width, plus palletizing
  • Semi auto version: adds manual girth folding, automatic girth gluing & end folding
  • Full auto version: adds automatic girth folding
  • 1,80 m and 1,20 m stack infeed heights available
  • Options: 2 or 3 stacks at infeed, double & quad ream stacking at palletizer
Appropriate for...

  • Small converters currently hand-wrapping products
  • Small converters requiring higher quality end products
  • Small converters with potential to upgrade to fully automatic ream wrapping
  • Large capacity mills currently staffing manual labor force hand-wrapping rejected materials
Product Features

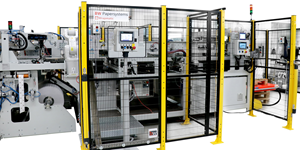

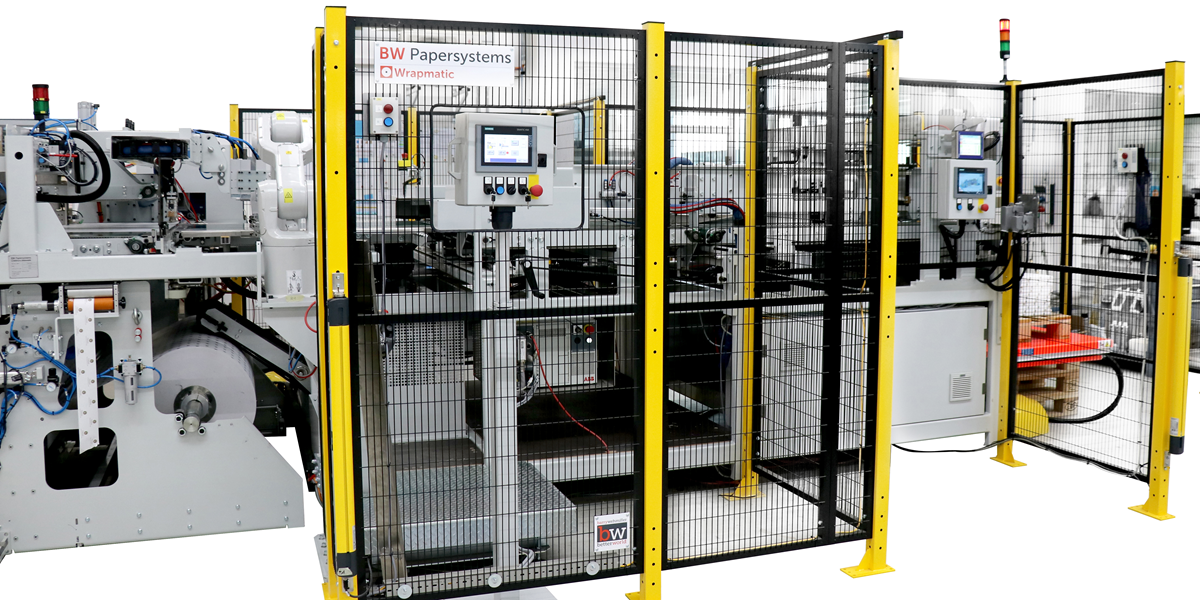

The Wrapmatic GRSX is a modular, low to medium capacity folio-size ream wrapper. It is scalable from a basic wrapping table version to semi-automatic to even fully automatic wrapping. It handles all palletized paper and plastic sheets and other flat materials, ranging from 20 up to 600 gsm.

Scalable Automation Level

The GRSX can be scaled from a wrapping table with up to 3-4 reams/min. to a semi or even fully automatic version with up to 8 reams/min. output.

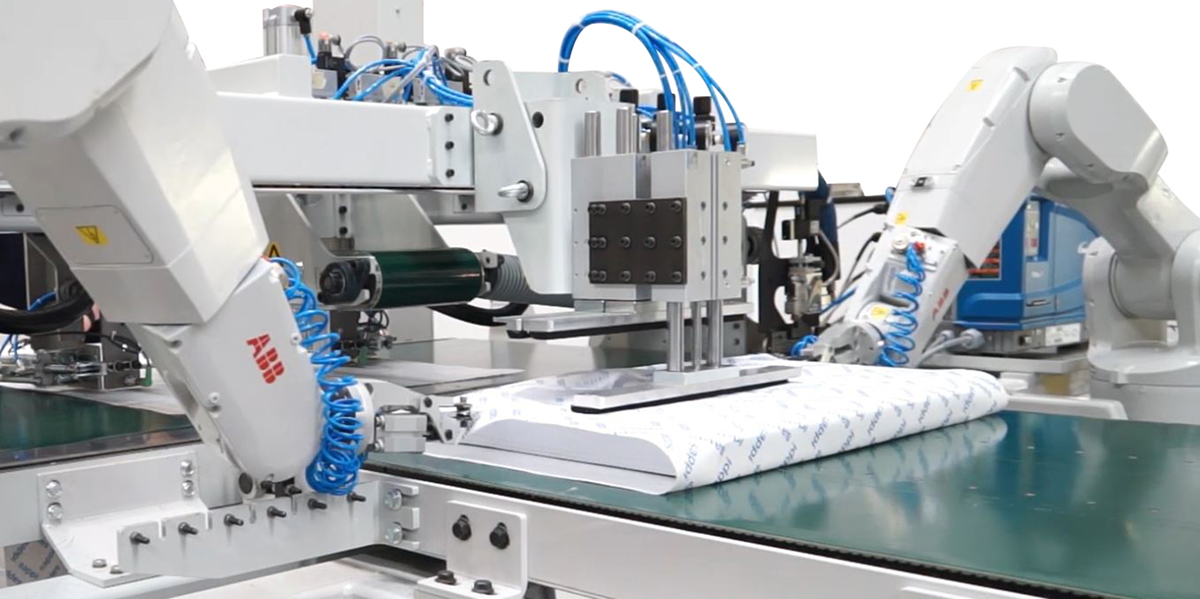

Robotic Option

By adding robotic arms to the wrapping process, the performance and product quality level of the GRSX wrapper increases significantly – while labor expenses decrease.

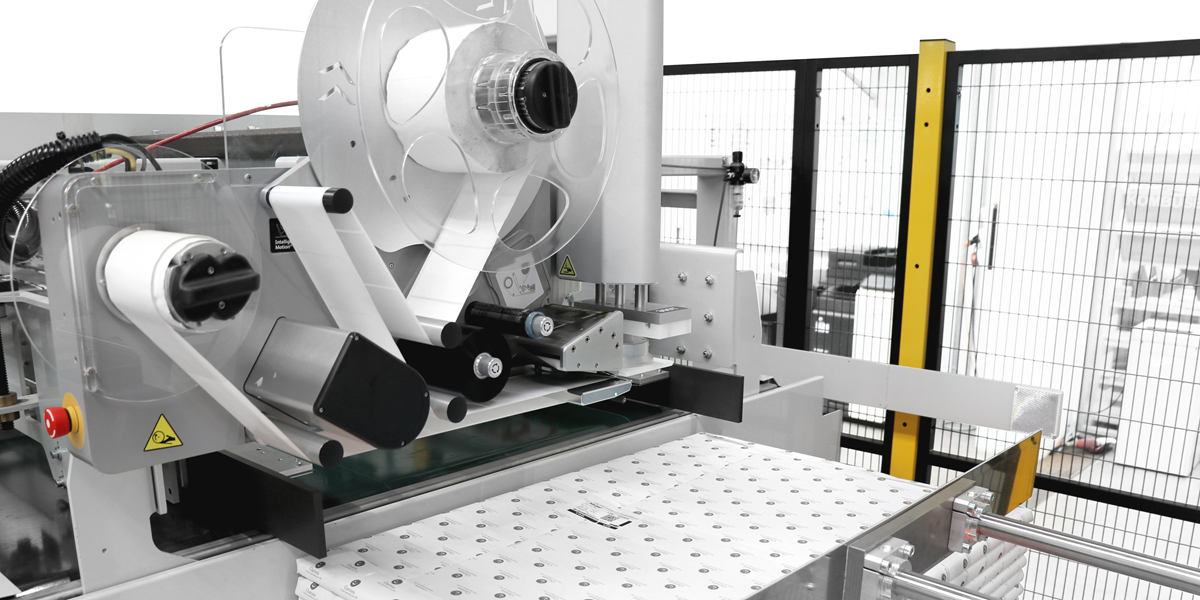

Infeed Stack and Palletizer Options

Based on the product sizes to be wrapped, the GRSX can be optionally configured for single, double, or even triple stack infeed. At the palletizer, a double/quad stack configuration is available as option.

Easy Operation

This wrapper offers simple and ergonomic operation with quick changeover functions requiring no tools and precision adjustments for constant and high wrapping quality.
  • Technical Data
  • Product Details
  • Options
Ream width279 mm (min.)1200 mm (max.)
Ream length420 mm (min.)1400 mm (max.)
Ream thickness15 mm (min.)130 mm (max.)
Ream Height
(End Fold)		25 mm (min.)130 mm (max.)
Ream Height
(Over Fold)		15 mm (min.)50 mm (max.)
Ream Weight5 kg (min.)80 kg (max.)
Stack Height incl. pallet1200 or 1800 mm pile height
Mechanical
speed/min.		up to 3-4 reams (wrapping table)
up to 8 reams (semi-/full automatic)
Suitable products for
wrapping		Paper, Paper Board, Carbonless Paper, Synthetic Paper, Plastic Sheet Materials
Product
(paper) Grades		20 - 600 gsm
Wrapping materialKraft & Poly Coated Paper (coated internally) 80- 120 gsm
Reel: max. dia. 1000 mm & 76 mm core
Ream FeedingManual
Infeed OptionsSingle, Double or Triple Stack
Palletizer OptionsSingle, Double/Quad Stack
Machine OperationElectro-Mechanical/Pneumatic
 Reel Changeover
Time		5 - 10 Minutes
Required OperatorsWrapping table: 3 (or 2 for small sizes)
Semi auto: 3 (or 2 for small sizes)
Full auto: 1 plus 1 assistant (part-time)

From simple wrapping table to fully automatic wrapping - this upgradeable wrapper is what you need

Folio ream wrapper expertise for paper & board converters

The new GRSX (Grande Risme Super Excellent) clearly brings together the long-standing experience of the Wrapmatic product line. This new low and medium capacity wrapper was designed for companies starting their business with a future growth plan ahead or for those converters that currently are hand-wrapping their products and need to reduce labor overhead expenses.

3 base versions - scaled to your need

The GRSX is available in three base, upgradeable versions:

  • Wrapping Table: A mainly manual machine that greatly improves the product quality compared to hand-wrapping. The ergonomic infeed and wrapping height reduces operator fatigue. And with its automatic cutting of wrapping material to selected length and width as well as automatic palletizing, the output is at 3-4 reams per minute
  • Semi-automatic wrapper: Automatic girth gluing, end gluing and folding are added to the wrapping table - increasing the output to 8 reams per minute
  • Fully automatic wrapper: Once your business flourishes, you can upgrade your GRSX to become a fully automatic ream wrapper including automatic girth folding
What all versions have in common: simple and ergonomic operation, quick changeover functions requiring no tools, precision adjustments for constant and high wrapping quality.

Infeed stack and palletizing options available

Based on the product sizes you need to wrap, the GRSX can be optionally configured for single, double or even triple stack infeed. An optional conveyor is required for more than a single stack. At the palletizer, a double/quad stack configuration is available as option, providing full flexibility for product sizes wrapped.

Maximize your ROI significantly - by increasing product output and reducing the number of operators

Without investing in a new folio ream wrapper, you can just later upgrade your GRSX to a semi or even completely automatic wrapper. And adding a second machine means doubled output and less total operators - as they support two machines at a time.

Possible add-ons could even include auto infeed up to robotic solutions.

  • Auto infeed
  • Robotic wrapping feature
Video image_Wrapmatic GRSX_folio ream wrapper

Wrapmatic GRSX - Modular Folio-Size Ream Wrapper, with optional Robotic Arms

The GRSX will grow with your business - because it is modular and can be scaled from a basic wrapping table version to semi-automatic to even fully automatic wrapping. It's optional robotic arm wrapping feature is a plus, further enhancing it's performance and efficiency. The GRSX can handle a wide range of palletized paper and plastic sheets and other flat materials, ranging from 20 up to 600 gsm. Ream sizes range from 279 x 420 mm to 1200 x 1400 mm. Output: Wrapping table up to 3-4 reams/min. and semi-/full automatic version up to 8 reams/min.

Watch Video
