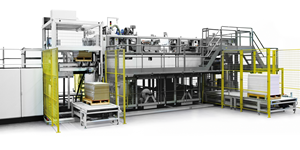

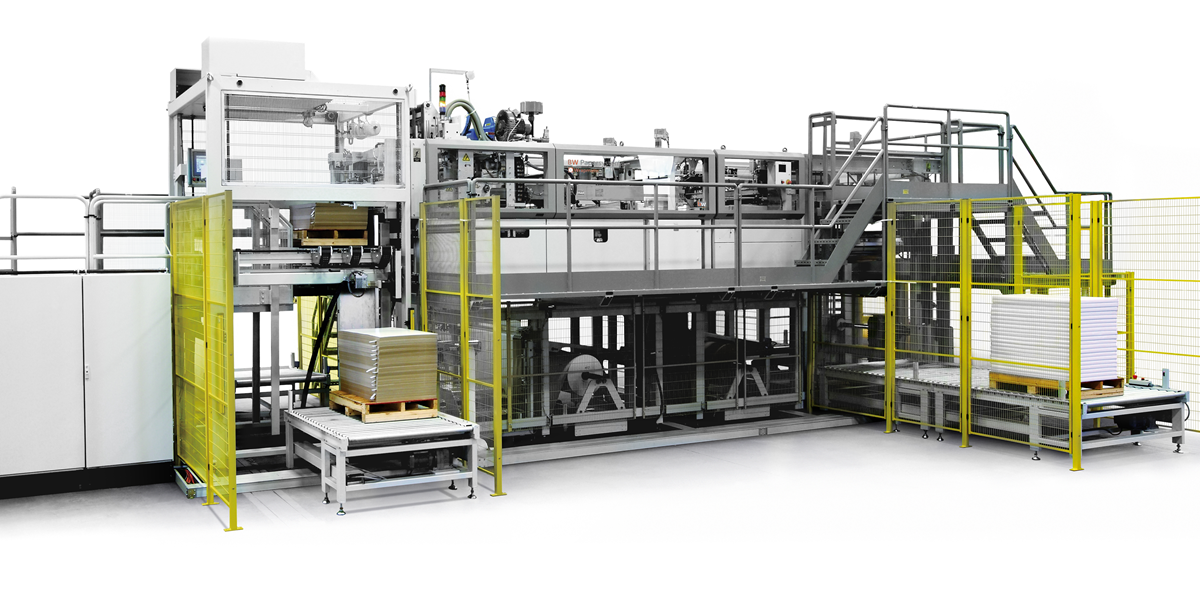

Wrapmatic GRM Fully Automatic Folio Ream Wrapper

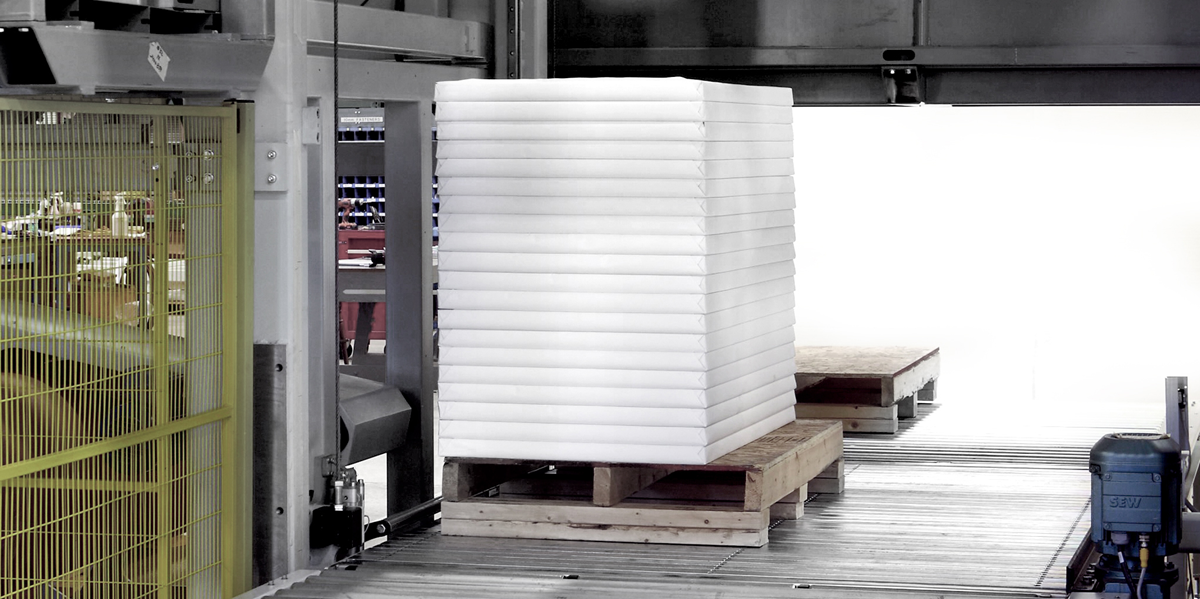

Wrapmatic GRM Ream Wrapper Reams on Pallet

Product Description

This fully automatic, high-speed and flexible folio-size ream wrapper, suitable for sizes from 297 x 420 mm (A3) up to 1000 x 1400 mm, efficiently wraps up to 17 reams/minute and handles all sorts of paper, board or aluminium plates. High cutting accuracy and precise glue application guarantee tight and blemish-free wrapped reams.

Fully automatic wrapping process
Suitable for a variety of applications & formats
Quick size changeover
Easy operation with simple, ergonomic feeding mechanism with short ream push (250 mm)
Only 1 operator needed for full machine
Precise positioning of reams & solid square pallet
High cut-off accuracy & lateral trimming
Hot melt glue system
Modular system for expansion (incl. infeed system, palletizer and transport system options)

Appropriate for...

Converters looking for fully automatic ream wrapping
Paper mills

Download a brochure

Parts

Maintenance

Upgrades

Product Features

The Wrapmatic GRM is a fully automatic, high-speed and flexible folio-size ream wrapper, suitable for sizes from 297 x 420 mm (A3) up to 1000 x 1400 mm. It efficiently wraps up to 17 reams/minute and handles all sorts of paper, board or aluminum plates. High cutting accuracy and precise glue application guarantee tight and blemish-free wrapped reams.

Automation

The GRM has a fully automatic wrapping process including a patented wrapping cycle to ensure highest wrapping quality and protection of the paper product.

Product Quality

This wrapper ensures tightly wrapped reams with precise glue application. To pack very tight reams, the GRM design sets a glue dropping point which cannot contaminate the paper and the automatically adjusted palletizer keeps the wrapped product perfectly aligned and stacked and ready for transportation.

Modular Design

With its modular design, the GRM wrapper is flexible and can be easily added on to and converted for a wide range of configurations. Options include various infeed systems, reel holders, palletizers and transport systems.

Operational Simplicity

The GRM is easy to operate, one operator sets up the system from the touch panel for the required size. Its ergonomic feeding mechanism only requires a short ream push (250 mm). The machine runs with a single roll stand, with a second one in stand-by, ready for a very quick wrapping paper change that can be achieved in less than a minute.

Mechanical speed/min.	up to 17 reams per minute
Ream width	420 mm / 16 in (min.) optional: 297 mm / 11 in (min.)	1000 mm / 39 in (max.)
Ream length	420 mm / 16 in (min.)	1400 mm / 55 in (max.)
Ream thickness	15 mm / 0.6 in (min.)	80 mm / 3 in (max.) optional: up to 100 mm / 4 in
Ream weight	6 kg (min.)	60 kg (max.)
Sealing method	Hot melt glue
Working height level	2650 mm / 104 in
Ream stack height - discharge incl. pallet	1800 mm / 70 in
Machine weight	6000 kg (wrapper only)

Fully automatic, efficient wrapper for highest productivity

The Wrapmatic GRM is a fully-automatic folio-size ream wrapper that is ideal for converters and paper mills. It wraps a wide range of formats and handles materials from paper to aluminium plates.

Precise glue dropping point application

To pack very tight reams, it is important to set a glue dropping point which cannot contaminate the paper. The Wrapmatic GRM design and control of the gluing point solves this problem easily, guaranteeing blemish-free wrapped reams. The automatically adjusted palletizer keeps the wrapped product perfectly aligned and stacked and ready for transportation.

Modular system for expansion

With its modular design, the GRM wrapper is flexible and can be easily added on to and converted for a wide range of configurations to meet your requirements. Options include various infeed systems, reel holders, palletizers and transport systems.

Operational simplicity

The GRM is easy to operate, one operator sets up the system from the touch panel for the required size. The machine runs with a single roll stand, with a second one in stand by, ready for a very quick wrapping paper change that can be achieved in less than a minute.

A patented wrapping cycle

Highest wrapping quality and protection of the paper product is ensured by a patented, fully automated wrapping cycle. After the pallet is raised to working level in the depalletizer, the ream is automatically squared, centred and fed into machine to an intermediate belt conveyor. The wrapping paper sheet is cut and wrapped around the ream as it stops on the intermediate belt conveyor. The wrapping paper’s tail is lifted by rear folder and brushes complete the girth wrap. Then fixed and rotating tuckers fold in the side flaps. Overfold of end flaps is done by helix folders. The wrapped ream then is transported to palletizer. A hot melt gluing system is used for girth and end seals.

Infeed system, palletizer and transport system options
