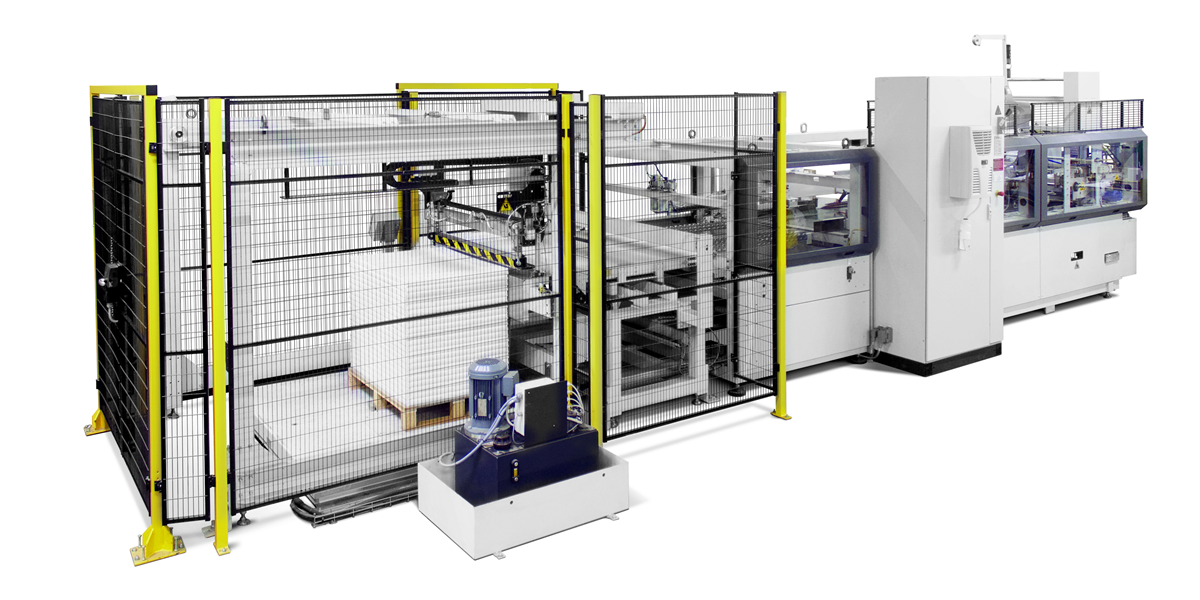

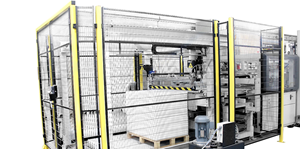

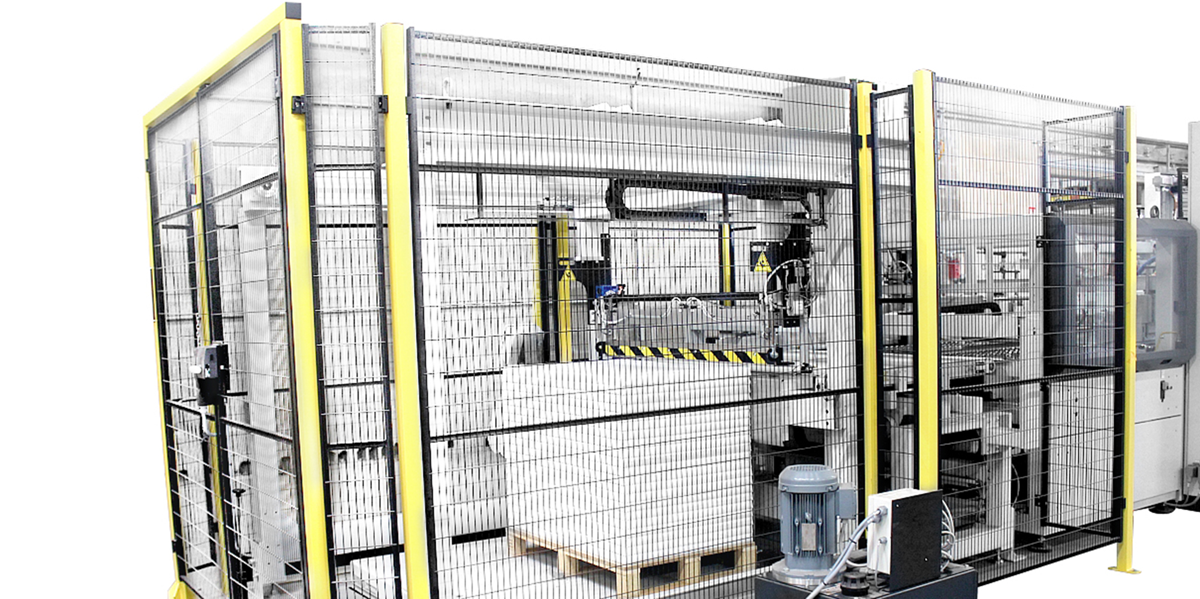

Wrapmatic GREC Folio Ream Wrapper

Product Description

This automatic folio-size ream wrapper handles ream sizes from 297 x 420 mm (A3) up to 1000 x 1400 mm and flexibly wraps materials such as paper, board, off set aluminium plates or plastic sheets.

  • Fully automatic wrapping process with manual infeed
  • Suitable for a variety of applications & formats
  • Flexible with quick size changeover
  • Easy operation, only 1 operator needed
  • Reel-fed wrapping material
  • Compact design for small footprint
  • Hot melt glue system
Appropriate for...

  • Small to mid-scale converters of various materials

Product Features

The Wrapmatic GREC is a compact, flexible folio-size ream wrapper for small to mid-range production. The automatic ream wrapper handles ream sizes from 297 x 420 mm (A3) up to 1000 x 1400 mm and flexibly wraps materials such as paper, board, offset aluminum plates or plastic sheets.

Automatic

Fully automatic wrapping process with manual infeed, suitable for a variety of applications & formats.

Flexibility

A quick size changeover time of 1 to 6 minutes machine ensures quick order changes. Wrapping material from the reel includes Kraft or poly-coated paper.

Patented Wrapping Cycle

Wrapping quality is ensured by a patented wrapping cycle and the use of a Hotmelt glue system.

Easy Operation, Small Footprint

Because the GREC wrapper is so easy to operate, only one operator is needed. The machine’s compact design requires only a small floor area and no foundation or special floor requirements.
  • Technical Data
  • Product Details
  • Options
Mechanical speed/min.up to 8 reams per minute
optional: up to 10 reams per minute
Ream width420 mm (min.)
optional: 297 mm (min.)
Ream length420 mm (min.)
Ream thickness15 mm (min.)
Ream weight6 kg (min.)
Sealing methodHot melt glue
Pallet stack height - infeed (incl. pallet)1000 mm
optional: 1750 mm
Pallet stack weight - infeed1000 kg
optional: 2000 kg
Working height level1000 mm
Ream stack height - discharge (incl. pallet)1000 mm
optional: 1800 mm
Suitable products for wrappingPaper, paper board, NCR papers, coated papers, plastic sheets (60 - 400 gsm), metal plates
Wrapping materialKraft & poly-coated paper (80 - 120 gsm), reel-fed
Depalletizingfrom single stack
Palletizingsingle stack / double stack / quad stack
Size changeover time1 - 6 Minutes
Machine weight3800 kg

Flexible wrapping of various materials & formats

Automatic solutions for small to mid-scale converters

The Wrapmatic Grande Risme Easy Compact (GREC) is a compact automatic folio-size ream wrapper that is ideal for wrapping a wide range of materials from paper to plastic sheets. In addition the Wrapmatic GREC is characterized by its flexibility (quick size change) and easy operation.

Quick size changeover times for high flexibility

A size changeover time of 1 to 6 minutes machine ensures quick order changes. Wrapping material from the reel includes Kraft or poly-coated paper.

A patented wrapping cycle

Wrapping quality is ensured by a patented wrapping cycle. After the pallet is raised to working level in the depalletizer, the ream is manually squared, centred and fed into machine to an intermediate belt conveyor. The wrapping paper sheet is wrapped around the ream as it stops on the intermediate belt conveyor. Rear edges of the wrapping paper are lifted by rear folder and brushes complete the girth wrap. Then fixed and rotating side folders fold in the side flaps. Overfold of end flaps is done by helix folders. The wrapped ream then is transported to palletizer.

Easy operation and small in footprint

Because the GREC wrapper is so easy to operate, only one operator is needed. The machine’s compact design requires only a small floor area and no foundation or special floor requirements.

Please contact us for more information.
