SmartOne T-250 RFID Production Machine

Product Description

The SmartOne T-250 Economic Wet Inlay and Label Attaching Machine accepts 10 inch web widths, incorporating the innovative features of BW Bielomatik RFID converting machines built during the last two decades. These field proven features include the unrivalled ability to perform up to 60,000 inlay insertions per hour through the use of intelligent servo drive technology and high speed HF and UHF testing units. The machine is renowned for ease of operation and short setup change times.

  • Solid and compact machine frame for low-cost mass production
  • Reel-to-reel Smart Label production
  • High speed register processing of pre-die cut labels andwet inlays
  • Backside registration possible
  • Highly flexible format range, no format parts
  • Excellent accessibility, ergonomic design, short setup changes
  • Modern servo-drive and controls technology



Product Features

Economic High-Speed RFID Production Machine

Reel-to-Reel

Production of reel-to-reel Smart Labels.

Processing of Pre-Die Cut Materials

High speed register processing of pre-die cut labels and wet inlays.

Low-Cost Mass Production

Solid and compact machine frame for low-cost mass production.

Operator-Friendly

Excellent accessibility, ergonomic design, short setup changes.
  • Technical Data
  • Product Details
  • Options
ImperialMetric
Processing width  10 in.250 mm
Speed - under certain conditionsmax.240 fpm75 mpm
Speed - inlay placementmax.1000 inlayplacements/min
Reel diameter - air shafts, quick changemax.23.6 in.600 mm

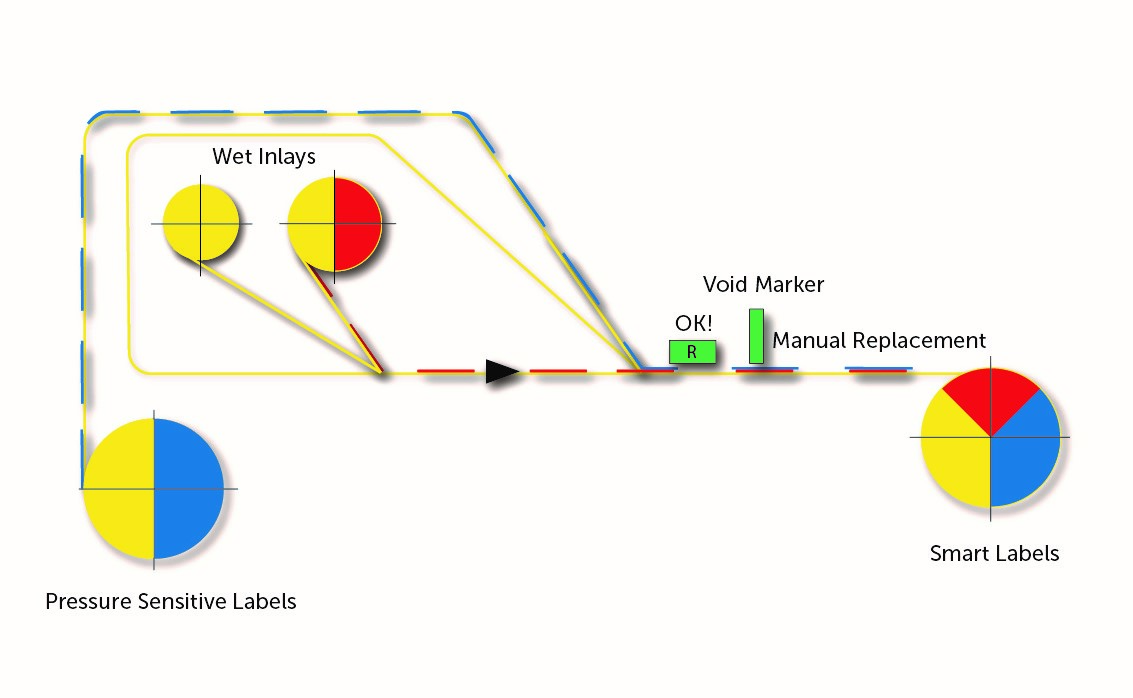

SmartOne T-250 Process

SmartOne Process

 Please contact us for more information.
